IKO BHAM1624
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
(BRAND)：IKO
(Availability)：In Stock
Order Number
BHAM1624
Shaft Diameter
25.400
mm
Inscribed circle diameter
25.400
mm
Outer Diameter
33.338
mm
Width
38.10
mm
Maximum width
3.4
mm
Maximum width
0
mm
Basic dynamic load rating
39400
N
Basic static load rating
74400
N
Mass
71.0
g

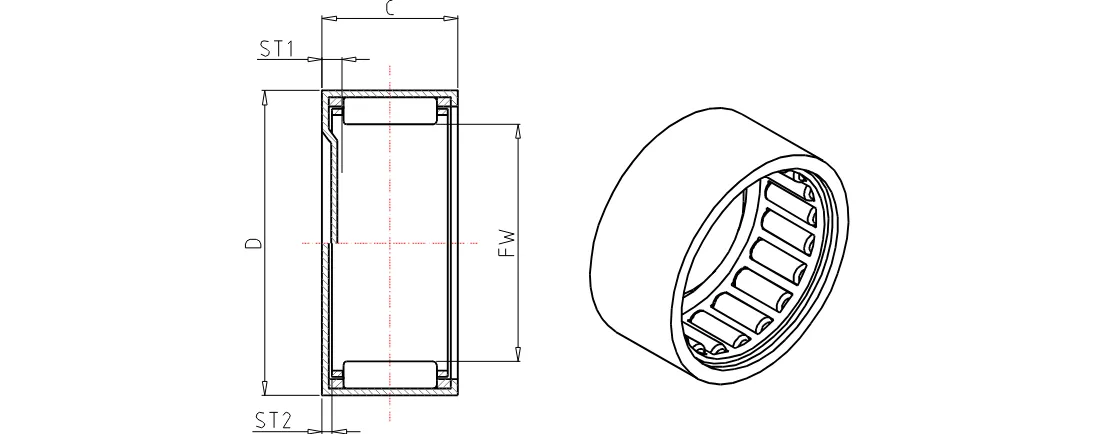

The IKO BHAM1624 Is a Shell Needle Roller Bearing
What type of bearing is the BHAM1624?
The IKO BHAM1624 belongs to the Needle Roller Bearings product series and is listed as a shell needle roller bearing with a cage-type internal structure and a closed end.
- Brand: IKO
- Model: BHAM1624
- Bearing type: Needle roller bearings
- Internal structure: Cage type
The BHAM1624 Uses Chromium Molybdenum Steel Construction
What material and design details are specified for this bearing?
The supplied product data identifies the bearing material as chromium molybdenum steel. It is described as inch, caged, heavy duty, and closed end; these details describe the supplied product configuration without adding unstated ratings or certifications.
- Shell needle roller bearing design
- Inch configuration
- Cage-type structure
- Closed end
The BHAM1624 Has Documented Dimensions and Load Ratings
What specifications are provided for the BHAM1624?
The recorded specifications include a 25.400 mm shaft diameter, 25.400 mm inscribed circle diameter, 33.338 mm outer diameter, and 38.10 mm width. The basic dynamic load rating is 39400 N, the basic static load rating is 74400 N, and the mass is 71.0 g.
- Shaft diameter: 25.400 mm
- Inscribed circle diameter: 25.400 mm
- Outer diameter: 33.338 mm
- Width: 38.10 mm
- Basic dynamic load rating: 39400 N
- Basic static load rating: 74400 N
- Mass: 71.0 g
