IKO BHAM168
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
BHAM168 IKO Needle Roller Bearing Overview
The BHAM168 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. It uses a caged internal structure and is described as an inch, closed-end shell needle roller bearing made from chromium molybdenum steel.
What type of bearing is the BHAM168?
The BHAM168 is classified as a Needle Roller Bearing. Its listed internal structure is Cage Type, and its product description identifies a caged, closed-end shell design.

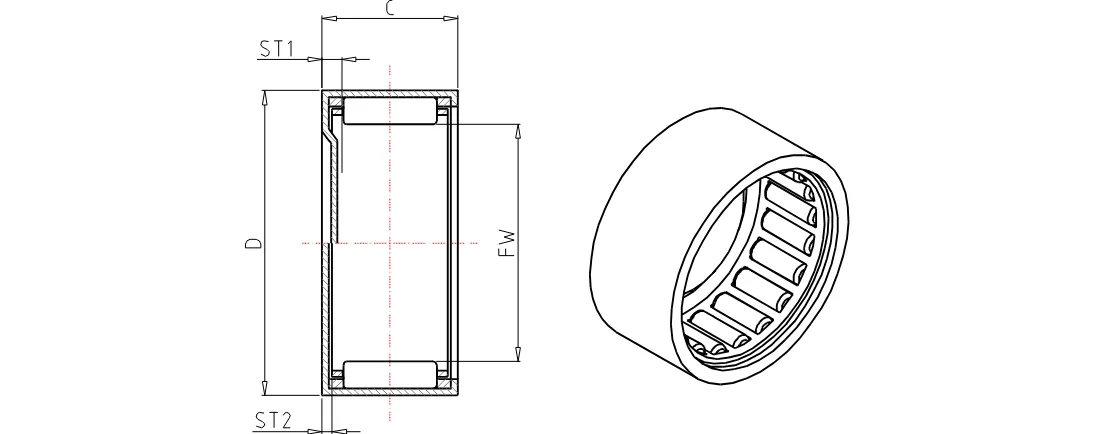

BHAM168 Dimensions and Specifications
- Order Number: BHAM168
- Brand: IKO
- Shaft Diameter: 25.400 mm
- Inscribed Circle Diameter: 25.400 mm
- Outer Diameter: 33.338 mm
- Width: 12.70 mm
- Mass: 27.0 g
What load ratings are listed for the BHAM168?
The supplied data lists a basic dynamic load rating of 10200 N and a basic static load rating of 13100 N. The product data also includes maximum width entries of 3.4 mm and 0 mm.
BHAM168 Material and Product Identification
The BHAM168 is listed under the category path Brand > IKO > Needle Roller Bearings. The supplied bearing material is chromium molybdenum steel, and the title description identifies the bearing as a heavy-duty shell needle roller bearing.
How can the BHAM168 be identified for ordering?
Use order number BHAM168 and verify the IKO brand, needle roller bearing type, caged structure, chromium molybdenum steel material, and the listed dimensions before selection.
