IKO BHAM1816
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
(BRAND)：IKO
(Availability)：In Stock
Order Number
BHAM1816
Shaft Diameter
28.575
mm
Inscribed circle diameter
28.575
mm
Outer Diameter
38.100
mm
Width
25.40
mm
Maximum width
3.4
mm
Maximum width
0
mm
Basic dynamic load rating
30900
N
Basic static load rating
48600
N
Mass
64.0
g

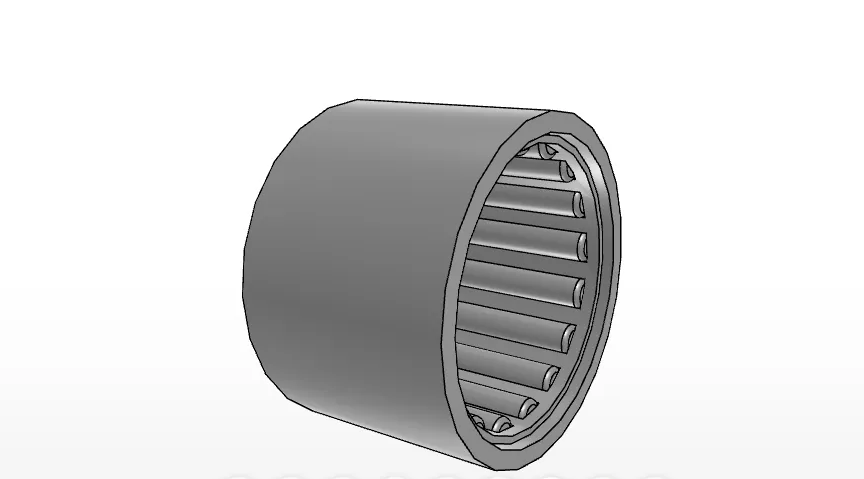

BHAM1816 IKO Shell Needle Roller Bearing Overview
The BHAM1816 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. It is supplied as an inch, caged, closed-end bearing made from chromium molybdenum steel and described as heavy duty.
What are the basic BHAM1816 identification details?
- Model / order number: BHAM1816
- Brand: IKO
- Bearing type: Needle roller bearing
- Internal structure: Cage type
- Configuration: Shell type, inch, closed end

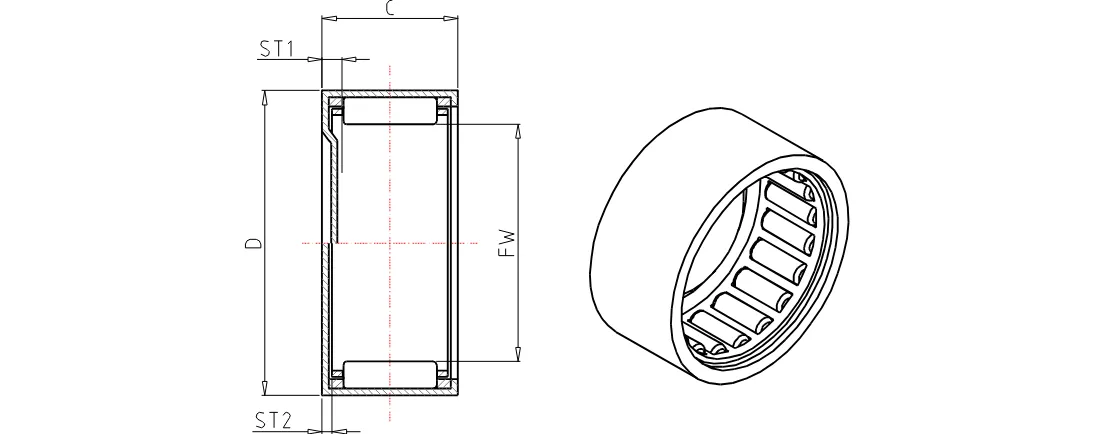

BHAM1816 Dimensional and Material Specifications
The supplied product data lists the BHAM1816 with a shaft diameter and inscribed circle diameter of 28.575 mm, an outer diameter of 38.100 mm, and a width of 25.40 mm. Its bearing material is chromium molybdenum steel.
What dimensions and mass are provided for this bearing?
- Shaft diameter: 28.575 mm
- Inscribed circle diameter: 28.575 mm
- Outer diameter: 38.100 mm
- Width: 25.40 mm
- Mass: 64.0 g
BHAM1816 Load Rating Information
The BHAM1816 needle roller bearing data includes basic dynamic and static load ratings. These values can be compared against the requirements of the intended shaft and housing arrangement when selecting a bearing.
What load ratings are listed for the BHAM1816?
- Basic dynamic load rating: 30900 N
- Basic static load rating: 48600 N
