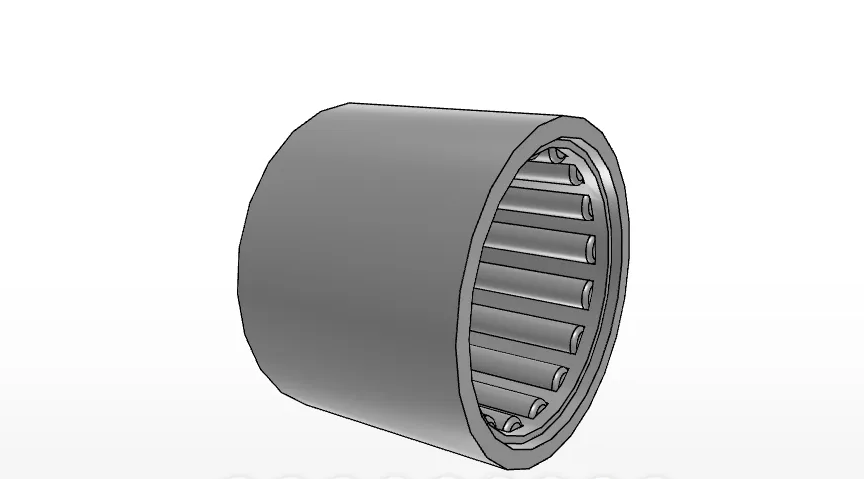

IKO BHAM1818
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
IKO BHAM1818 Needle Roller Bearing Introduction
The BHAM1818 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. It is an inch-series, caged, closed-end bearing described as a heavy duty shell needle roller bearing.
What material is specified for the BHAM1818?
The supplied product data identifies the bearing material as chromium molybdenum steel. No additional material grade or certification details are provided.
BHAM1818 Dimensions and Product Specifications
The BHAM1818 has a shaft diameter and inscribed circle diameter of 28.575 mm, an outer diameter of 38.100 mm, and a width of 28.58 mm. The listed mass is 71.5 g.
- Model: BHAM1818
- Brand: IKO
- Bearing type: Needle Roller Bearings
- Internal structure: Cage Type
- Design features: Shell type, caged, closed end, inch series
What are the stated load ratings for this bearing?
The supplied data lists a basic dynamic load rating of 34,900 N and a basic static load rating of 56,600 N. These ratings should be used according to the applicable bearing selection and installation requirements.
BHAM1818 Configuration Details
The product data identifies the BHAM1818 as a caged needle roller bearing with a shell-type configuration and closed end. The right-side specification data also includes maximum width entries of 3.4 mm and 0 mm as provided in the source record.
What category path applies to the BHAM1818?
The supplied category path is Brand > IKO > Needle Roller Bearings. This places the bearing under the IKO brand within the needle roller bearings category.
