IKO BHAM1820
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End

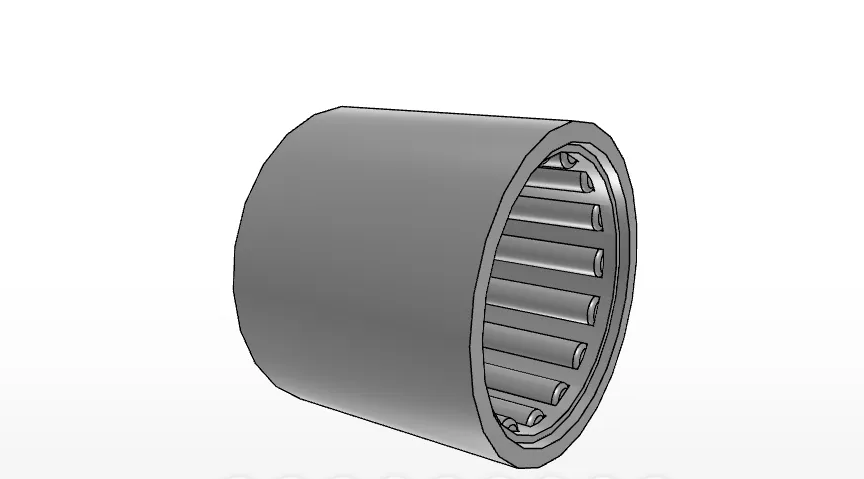

BHAM1820 IKO Shell Needle Roller Bearing Overview
The BHAM1820 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. The supplied data identifies it as an inch, caged, closed-end bearing made of chromium molybdenum steel.
What bearing type is the BHAM1820?
The BHAM1820 is classified as a Needle Roller Bearing. Its internal structure is listed as Cage Type, and its product description identifies a shell-type, closed-end configuration.

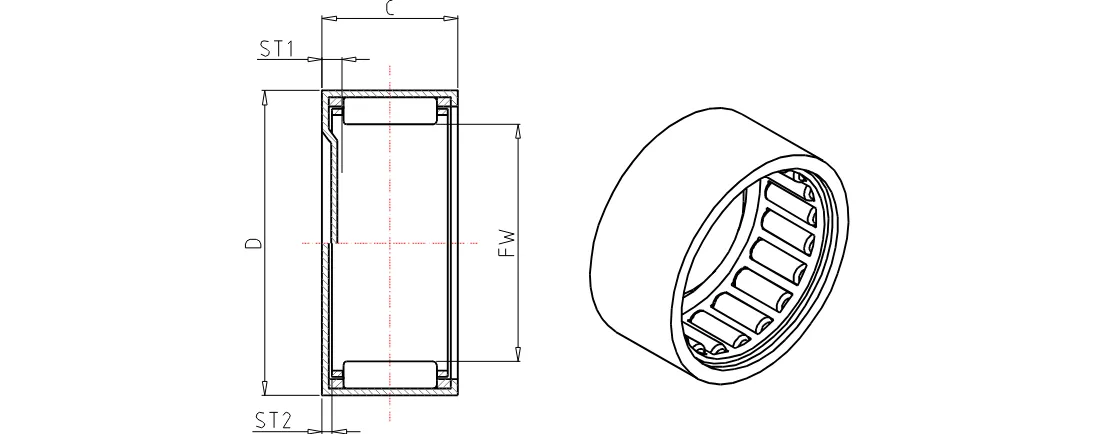

BHAM1820 Dimensions and Material Specifications
- Brand: IKO
- Order Number: BHAM1820
- Shaft diameter: 28.575 mm
- Inscribed circle diameter: 28.575 mm
- Outer diameter: 38.100 mm
- Width: 31.75 mm
- Material: Chromium molybdenum steel
- Mass: 78.0 g
What are the stated physical dimensions of the BHAM1820?
The supplied product data lists a shaft or inscribed circle diameter of 28.575 mm, an outer diameter of 38.100 mm, and a width of 31.75 mm. The listed mass is 78.0 g.
BHAM1820 Load Rating Data
The bearing data includes load-rating values for reference when selecting or reviewing the BHAM1820 against the stated specifications.
- Basic dynamic load rating: 37100 N
- Basic static load rating: 61100 N
What load ratings are provided for the BHAM1820?
The supplied data states a basic dynamic load rating of 37100 N and a basic static load rating of 61100 N. These values are limited to the product information provided.
