IKO BHAM2016
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
(BRAND)：IKO
(Availability)：In Stock
Order Number
BHAM2016
Shaft Diameter
31.750
mm
Inscribed circle diameter
31.750
mm
Outer Diameter
41.275
mm
Width
25.40
mm
Maximum width
3.4
mm
Maximum width
0
mm
Basic dynamic load rating
33200
N
Basic static load rating
55000
N
Mass
71.0
g
IKO BHAM2016 Shell Needle Roller Bearing Introduction
What is the BHAM2016?
The IKO BHAM2016 is a shell needle roller bearing in the IKO Needle Roller Bearings product series. It is an inch, caged, closed-end bearing described as heavy duty and made from chromium molybdenum steel.
- Brand: IKO
- Series: Needle Roller Bearings
- Bearing type: Shell needle roller bearing
- Internal structure: Cage type
- Material: Chromium molybdenum steel

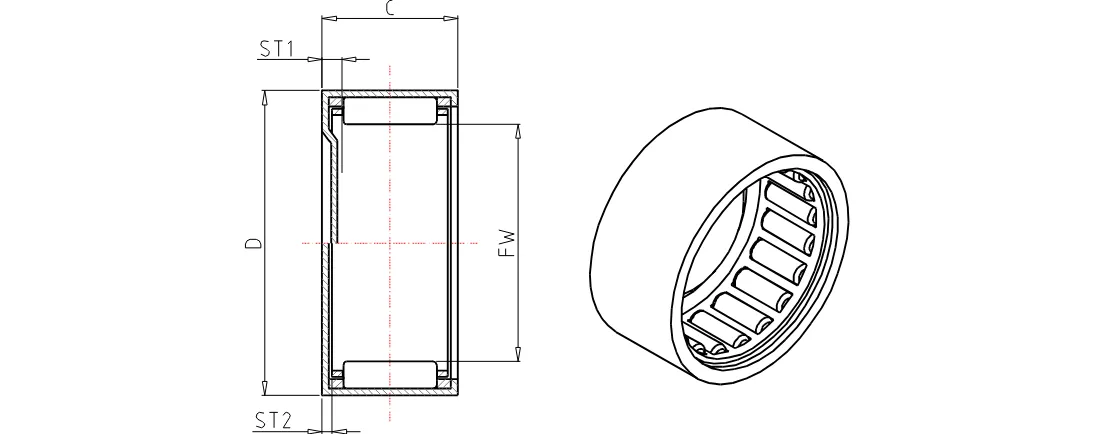

BHAM2016 Dimensions and Mass
What dimensions are provided for the BHAM2016?
The supplied product data lists the following dimensional and mass information for the BHAM2016:
- Shaft diameter / inscribed circle diameter: 31.750 mm
- Outer diameter: 41.275 mm
- Width: 25.40 mm
- Mass: 71.0 g
The data also includes maximum width entries of 3.4 mm and 0 mm.
BHAM2016 Load Ratings and Product Identification
What load ratings and order information are available?
The order number for this bearing is BHAM2016. According to the supplied product data, its basic dynamic load rating is 33200 N and its basic static load rating is 55000 N. The bearing is categorized under Brand > IKO > Needle Roller Bearings.
