IKO BHAM2212

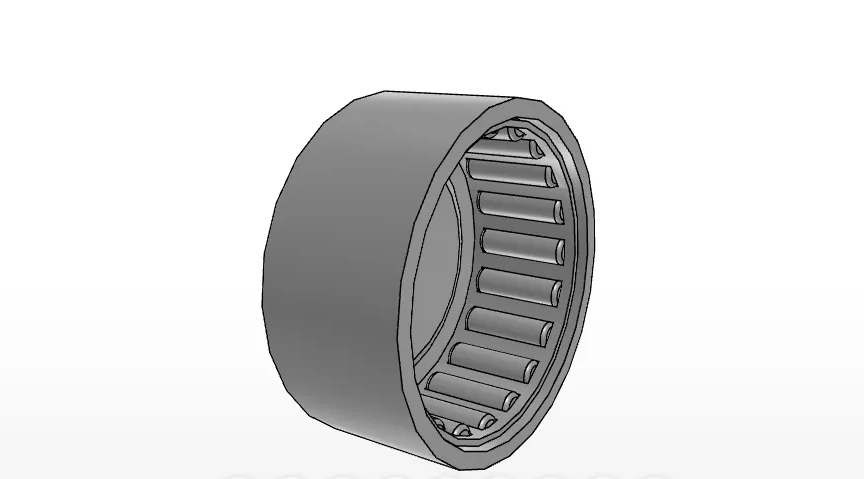

Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
BHAM2212 IKO Shell Needle Roller Bearing Specifications
The BHAM2212 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. It has an inch-based bore size, caged internal structure, closed end, and chromium molybdenum steel construction. The bearing is identified under the category path Brand > IKO > Needle Roller Bearings.
What are the dimensions of the BHAM2212 bearing?

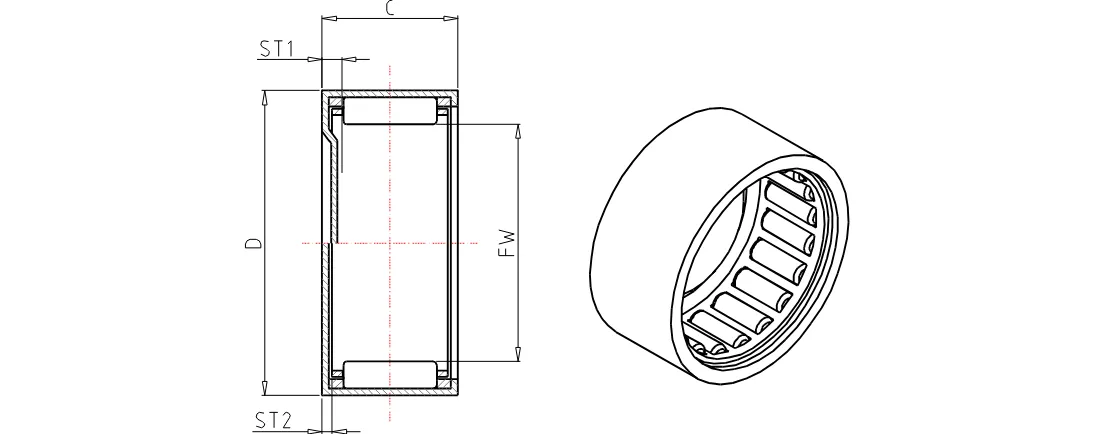

The supplied data lists a shaft diameter and inscribed circle diameter of 34.925 mm, an outer diameter of 44.450 mm, and a width of 19.05 mm. Additional supplied width fields are listed as 3.4 mm and 0 mm. Its mass is 59.0 g.
BHAM2212 Bearing Load and Design Data
The BHAM2212 is described as a heavy-duty shell needle roller bearing with a cage-type internal structure. The product data provides a basic dynamic load rating of 24800 N and a basic static load rating of 38800 N. These values should be used according to the supplied product specification.
What material and internal structure are specified for BHAM2212?
The bearing material is listed as chromium molybdenum steel, and the internal structure is listed as cage type. The product title also identifies it as a caged, closed-end shell needle roller bearing.
BHAM2212 Product Identification and Ordering Details
The order number for this bearing is BHAM2212, and the listed brand is IKO. It belongs to the needle roller bearings category and is presented with the dimensional, load, material, structure, and mass information supplied in the product data.
How is the BHAM2212 bearing identified in the product record?
The product record identifies it by order number BHAM2212, brand IKO, bearing type Needle Roller Bearings, and material Chromium Molybdenum Steel. The description identifies it as a shell needle roller bearing, inch, caged, heavy duty, and closed end.
