IKO BHAM2216
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
(BRAND)：IKO
(Availability)：In Stock
Order Number
BHAM2216
Shaft Diameter
34.925
mm
Inscribed circle diameter
34.925
mm
Outer Diameter
44.450
mm
Width
25.40
mm
Maximum width
3.4
mm
Maximum width
0
mm
Basic dynamic load rating
34100
N
Basic static load rating
58400
N
Mass
77.0
g
IKO BHAM2216 Shell Needle Roller Bearing Overview
What are the basic identifying details of the BHAM2216?
The IKO BHAM2216 is listed in the Needle Roller Bearings product series and category path. Its supplied description identifies it as a shell needle roller bearing with an inch-series configuration, caged internal structure, closed end, and heavy-duty designation.
- Order number: BHAM2216
- Brand: IKO
- Bearing type: Needle Roller Bearing
- Internal structure: Cage Type
- Configuration: Shell type, closed end

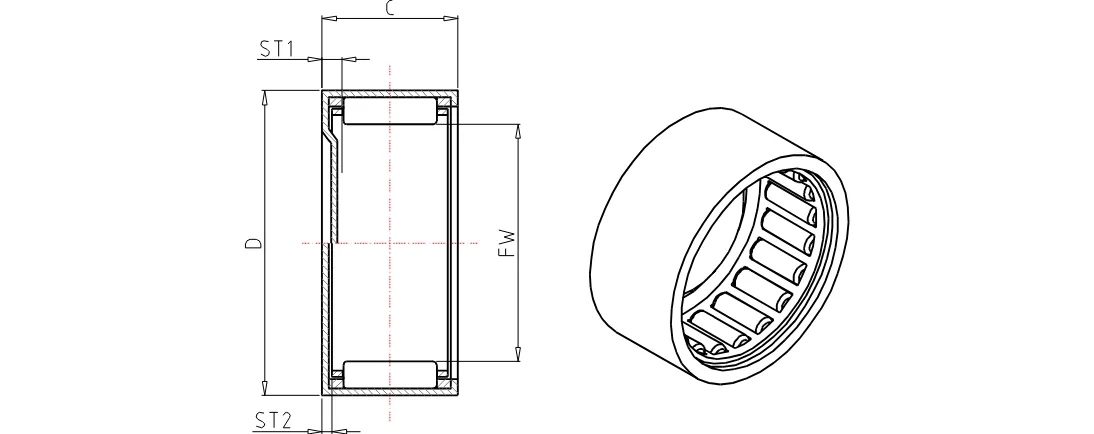

BHAM2216 Dimensional and Material Specifications
What dimensions and material are provided for this bearing?
The product data lists the bearing material as Chromium Molybdenum Steel. The supplied dimensional values are:
- Shaft diameter: 34.925 mm
- Inscribed circle diameter: 34.925 mm
- Outer diameter: 44.450 mm
- Width: 25.40 mm
- Maximum width entries: 3.4 mm and 0 mm
- Mass: 77.0 g
BHAM2216 Load Rating Information
What load ratings are stated in the product data?
The supplied performance data includes basic load ratings for the BHAM2216. These values can be compared with the requirements of the intended bearing arrangement:
- Basic dynamic load rating: 34100 N
- Basic static load rating: 58400 N
No additional application, certification, stock, warranty, or manufacturer-performance information is provided in the available product data.
