IKO BHAM2824
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
IKO BHAM2824 Shell Needle Roller Bearing
The BHAM2824 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. It uses a cage-type internal structure and is listed with a closed-end, inch-based design.
What material is specified for the BHAM2824?
The product data identifies the bearing material as chromium molybdenum steel. No additional material grade or certification information is supplied.

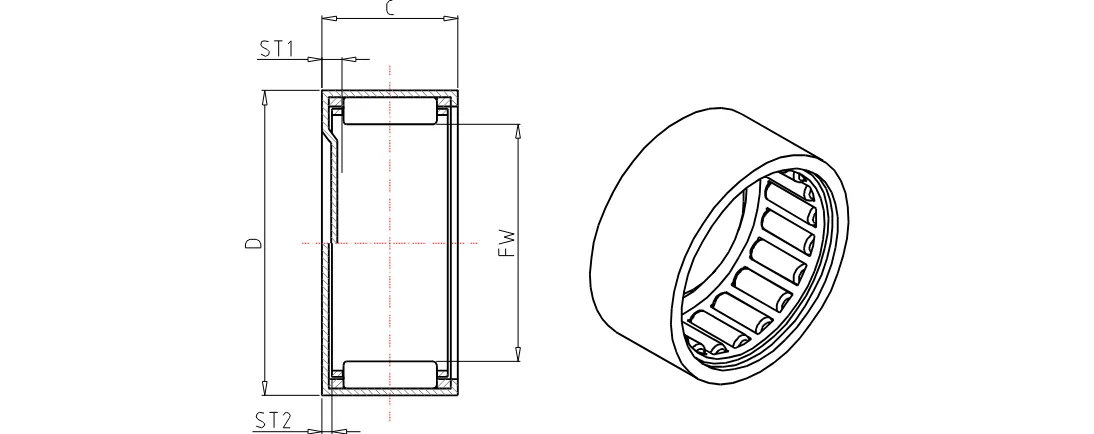

BHAM2824 Dimensions and Measured Values
The listed bearing dimensions and measured values are:
- Shaft diameter: 44.450 mm
- Inscribed circle diameter: 44.450 mm
- Outer diameter: 57.150 mm
- Width: 38.10 mm
- Mass: 210.0 g
What are the load ratings for this bearing?
The supplied data lists a basic dynamic load rating of 72200 N and a basic static load rating of 135000 N. Suitability for a particular load condition should be checked against the complete bearing specification.
BHAM2824 Product Configuration
The BHAM2824 is categorized under Brand > IKO > Needle Roller Bearings. The supplied product information describes it as a caged, heavy-duty shell needle roller bearing with a closed end.
What design details are included in the product data?
The data includes the bearing type, material, cage-type structure, closed-end description, dimensions, mass, and load ratings. Stock status, manufacturer guarantees, certifications, and specific applications are not provided in the supplied information.
