IKO BHAM68
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End

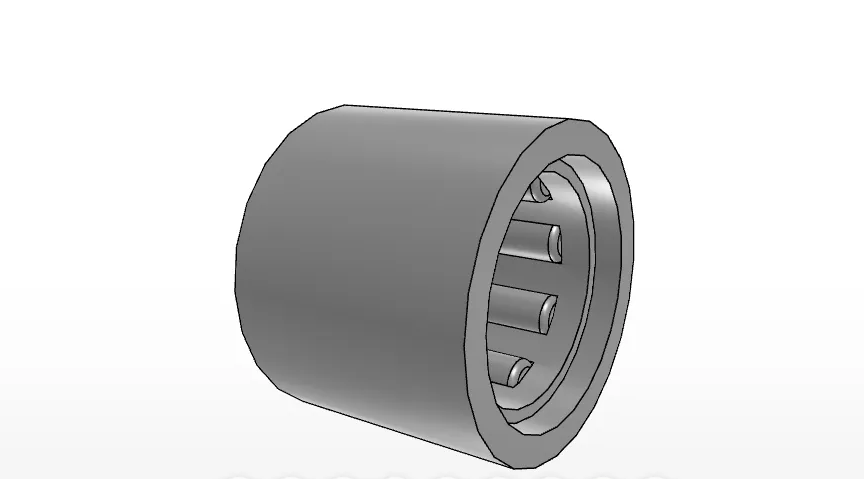

The IKO BHAM68 Is a Shell Needle Roller Bearing
What is the BHAM68?
The BHAM68 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. The supplied data identifies it as an inch, caged, closed-end bearing made of chromium molybdenum steel and described as heavy duty.
- Brand: IKO
- Model/order number: BHAM68
- Bearing type: Needle roller bearings
- Internal structure: Cage type
- Material: Chromium molybdenum steel
- Configuration: Closed end

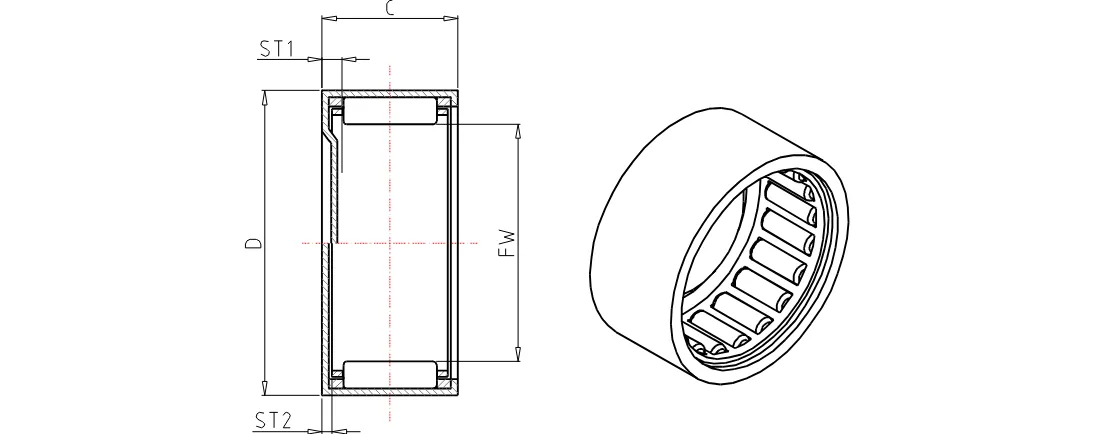

The BHAM68 Has Documented Inch-Based Dimensions
What dimensions are listed for this bearing?
The product data lists the shaft diameter and inscribed circle diameter as 9.525 mm, the outer diameter as 15.875 mm, and the width as 12.70 mm. The mass is listed as 8.6 g. Maximum width values of 0.0 mm and 1 mm also appear in the supplied data.
- Shaft diameter: 9.525 mm
- Inscribed circle diameter: 9.525 mm
- Outer diameter: 15.875 mm
- Width: 12.70 mm
- Mass: 8.6 g
The BHAM68 Lists Basic Load Ratings in the Product Data
What load rating information is available?
The supplied product data lists a basic dynamic load rating of 4880 N and a basic static load rating of 4740 N. These values describe the ratings provided in the product data; suitability for a specific use should be checked against the relevant assembly requirements.
Category path: Brand > IKO > Needle Roller Bearings.
