IKO BHAM78
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
BHAM78 IKO Shell Needle Roller Bearing Overview
The BHAM78 is an IKO shell needle roller bearing in the Needle Roller Bearings product series. The supplied data identifies it as an inch, caged, closed-end bearing made from chromium molybdenum steel.
What bearing type and structure does the BHAM78 use?
The BHAM78 is classified as a Needle Roller Bearing with a Cage Type internal structure. Its listed material is Chromium Molybdenum Steel.

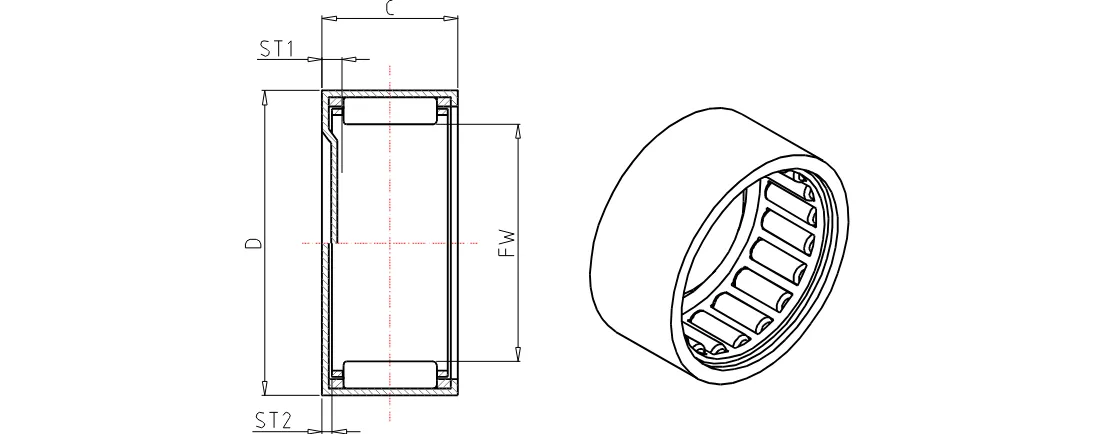

BHAM78 Dimensions and Product Specifications
- Order Number: BHAM78
- Brand: IKO
- Shaft Diameter: 11.112 mm
- Inscribed Circle Diameter: 11.112 mm
- Outer Diameter: 17.462 mm
- Width: 12.70 mm
- Mass: 10.0 g
What load ratings are listed for the BHAM78?
The supplied product data lists a basic dynamic load rating of 5680 N and a basic static load rating of 5970 N. These values are provided as catalog specifications for the bearing.
BHAM78 Closed-End Caged Needle Bearing Details
The product title describes the BHAM78 as a shell needle roller bearing with a closed end and a caged design. It is presented within the category path Brand > IKO > Needle Roller Bearings.
What identifying information should be checked when selecting this bearing?
Check the order number BHAM78, the IKO brand, the needle roller bearing type, caged internal structure, chromium molybdenum steel material, and the listed dimensions: 11.112 mm shaft diameter, 17.462 mm outer diameter, and 12.70 mm width.
