IKO BHAM812
Shell Needle Roller Bearing, Inch, Caged, Chromium Molybdenum Steel, Heavy Duty, Closed End
(BRAND)：IKO
(Availability)：In Stock
Order Number
BHAM812
Shaft Diameter
12.700
mm
Inscribed circle diameter
12.700
mm
Outer Diameter
19.050
mm
Width
19.05
mm
Maximum width
0.0
mm
Maximum width
1
mm
Basic dynamic load rating
11100
N
Basic static load rating
14500
N
Mass
15.8
g
IKO BHAM812 Shell Needle Roller Bearing Introduction
What is the BHAM812?

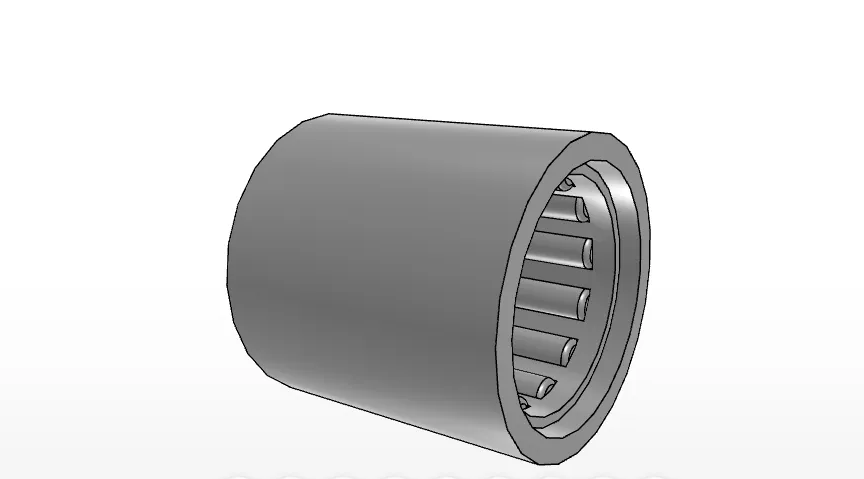

The IKO BHAM812 is a shell needle roller bearing in the Needle Roller Bearings product series. The supplied data identifies it as an inch, caged, closed-end bearing made from chromium molybdenum steel.
- Brand: IKO
- Model/order number: BHAM812
- Bearing type: Needle Roller Bearings
- Internal structure: Cage Type
- Material: Chromium Molybdenum Steel

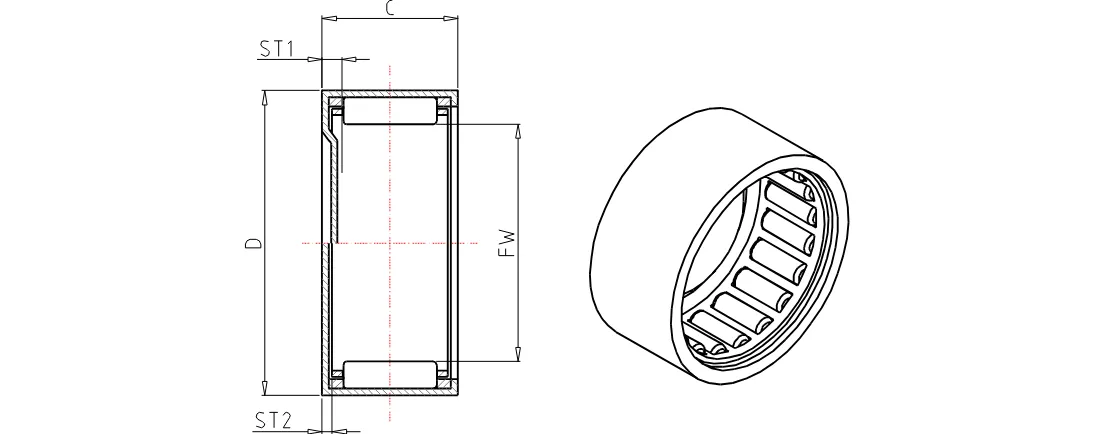

BHAM812 Dimensions and Mass
What dimensions are provided for this bearing?
The available product data lists the following dimensional and mass details for the BHAM812:
- Shaft diameter: 12.700 mm
- Inscribed circle diameter: 12.700 mm
- Outer diameter: 19.050 mm
- Width: 19.05 mm
- Mass: 15.8 g
BHAM812 Load Ratings and Construction
What load ratings and construction features are stated?
The supplied data states basic dynamic and static load ratings and describes the bearing configuration as caged with a closed end. These values can be used when reviewing the part against the specified bearing requirements.
- Basic dynamic load rating: 11100 N
- Basic static load rating: 14500 N
- Construction: shell type, caged, closed end
- Design description: heavy duty, inch shell needle roller bearing
