IKO KT121710EGB2
Needle Roller Cage for Engine, High Carbon Steel, B2 Tolerance of Roller Dia
The IKO KT121710EGB2 Is a Needle Roller Bearing Component
The KT121710EGB2 is listed under IKO Needle Roller Bearings in the product category path. The supplied information identifies it as a needle roller cage for engine-related use, made from high carbon steel, with B2 tolerance of roller diameter.
What bearing type and series does the KT121710EGB2 belong to?
The product is classified within the IKO Needle Roller Bearings series. Its listed internal structure is Carbon Cage Type, and its bearing material is recorded as carbon steel.

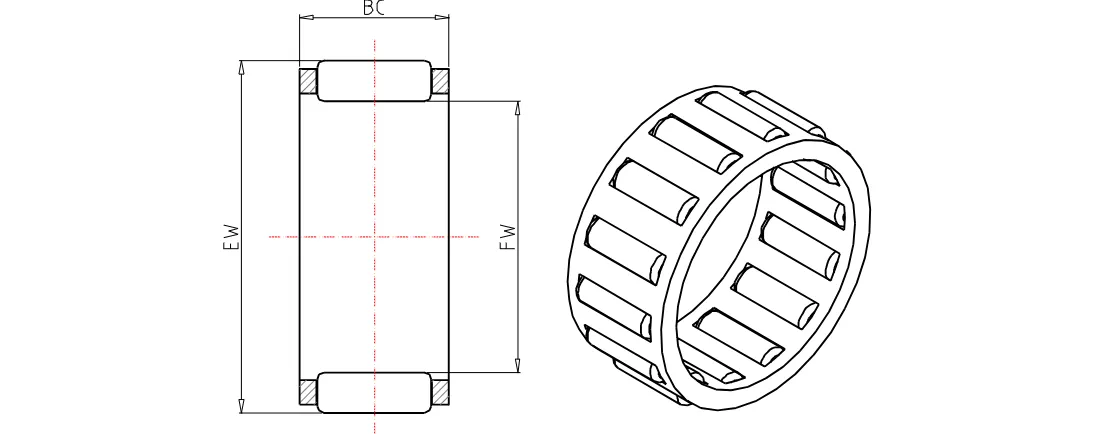

The KT121710EGB2 Has Documented 12 mm, 17 mm, and 10 mm Dimensions
The supplied specification data lists the shaft diameter and inner diameter as 12 mm, the outer diameter as 17 mm, and the width as 10.0 mm. The order number shown in the product data is KT121710EG.
What dimensions should be checked for installation planning?
- Shaft diameter: 12 mm
- Inner diameter: 12 mm
- Outer diameter: 17 mm
- Width: 10.0 mm
The KT121710EGB2 Includes Load Rating and Mass Data
The product data provides a basic dynamic load rating of 6670 N, a basic static load rating of 6380 N, and a mass of 5.3 g. These values can be used when comparing the bearing against the stated engineering requirements.
What performance and weight figures are supplied?
- Basic dynamic load rating: 6670 N
- Basic static load rating: 6380 N
- Mass: 5.3 g
