IKO KT141910EGB2
Needle Roller Cage for Engine, High Carbon Steel, B2 Tolerance of Roller Dia
KT141910EGB2 IKO Needle Roller Bearing Overview
The KT141910EGB2 is an IKO needle roller bearing within the Needle Roller Bearings product series. The product data identifies the order number as KT141910EG and describes it as a needle roller cage with B2 tolerance of roller diameter.
What bearing type and brand are associated with this model?
This model is supplied by IKO and is categorized under Needle Roller Bearings. The listed internal structure is Carbon Cage Type.
KT141910EGB2 Dimensions and Material Details

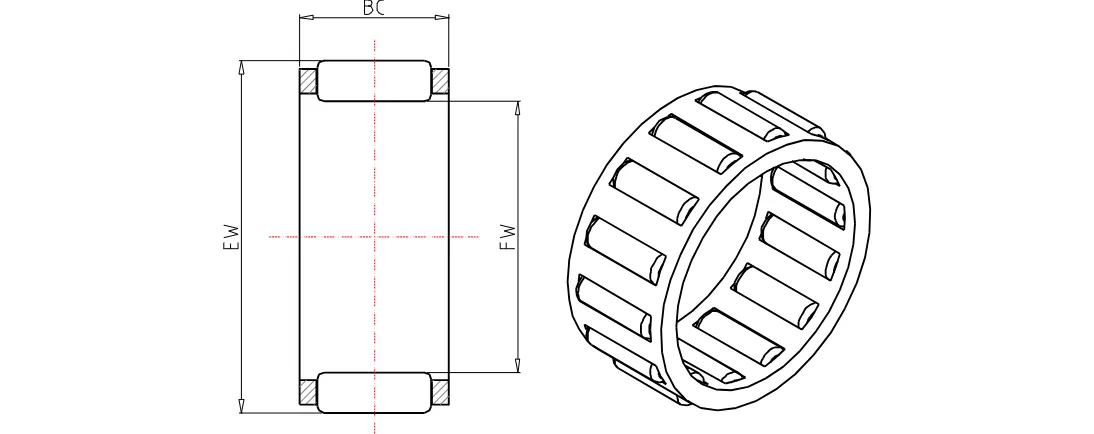

The bearing has an inner diameter of 14 mm, an outer diameter of 19 mm, and a width of 10.0 mm. The specified shaft diameter is 14 mm, and the recorded mass is 5.7 g.
What material information is provided for the KT141910EGB2?
The bearing material is listed as Carbon Steel. The detailed title also refers to high carbon steel; no additional material grades are specified in the supplied product data.
KT141910EGB2 Load Rating Specifications
The supplied product data lists a basic dynamic load rating of 6640 N and a basic static load rating of 6530 N for the KT141910EGB2.
What do the listed load ratings represent?
The basic dynamic load rating is 6640 N, and the basic static load rating is 6530 N. These values are provided as catalog specifications and should be used only as stated in the available product data.
