IKO KT162212EGB2
Needle Roller Cage for Engine, High Carbon Steel, B2 Tolerance of Roller Dia
IKO KT162212EGB2 Needle Roller Bearing Introduction
The KT162212EGB2 is an IKO product in the Needle Roller Bearings series. The supplied data identifies it as a needle roller cage with carbon steel bearing material and a carbon cage type internal structure.
What category does the KT162212EGB2 belong to?
It is listed under Brand > IKO > Needle Roller Bearings, with the bearing type recorded as needle roller bearings.

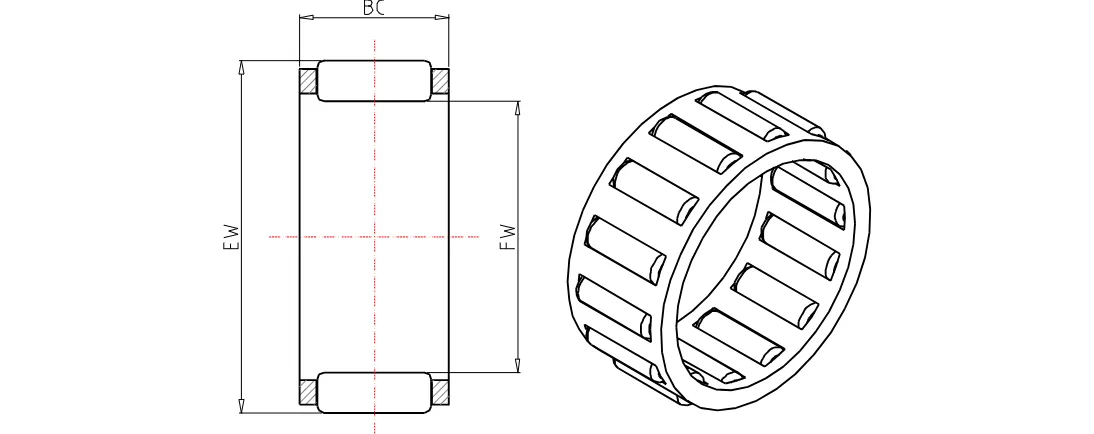

KT162212EGB2 Dimensions and Product Specifications
- Order number: KT162212EG
- Shaft diameter: 16 mm
- Inner diameter: 16 mm
- Outer diameter: 22 mm
- Width: 12.0 mm
- Mass: 9.7 g
What are the stated dimensions of the KT162212EGB2?
The supplied product data lists a 16 mm inner diameter, 22 mm outer diameter, and 12.0 mm width. The shaft diameter is also listed as 16 mm.
KT162212EGB2 Material and Load Rating Details
The product title describes the item as a needle roller cage made of high carbon steel, with a B2 tolerance of roller diameter. The structured data records the bearing material as carbon steel and the internal structure as carbon cage type.
What load ratings are provided for the KT162212EGB2?
The supplied data lists a basic dynamic load rating of 10500 N and a basic static load rating of 10900 N. These ratings are presented as product data and should be checked against the relevant IKO documentation for selection purposes.
