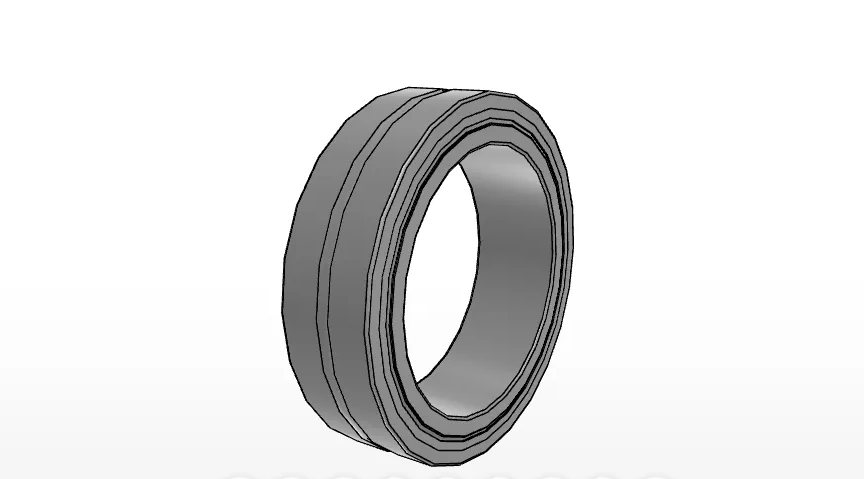

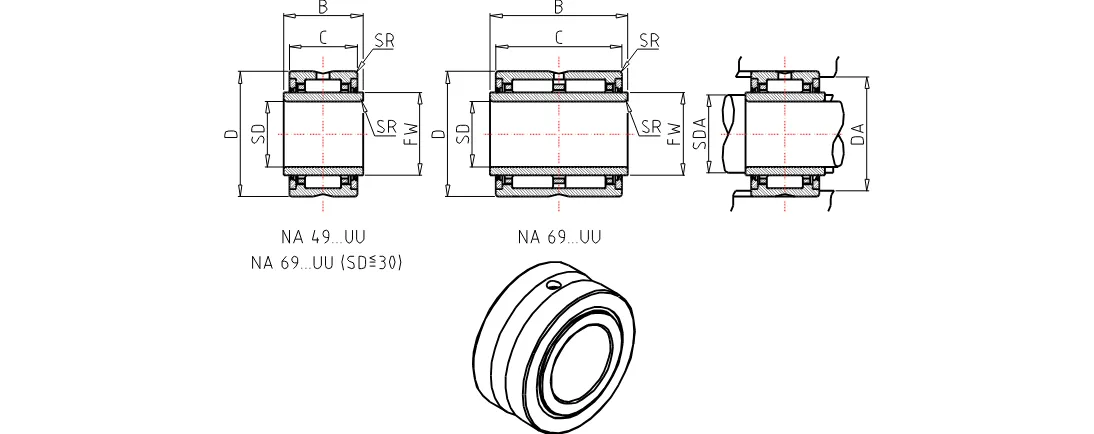

IKO NA49/22UU
Machined Type Needle Roller Bearings, High Carbon Steel, Oil Hole, With Seals, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NA49/22UU
Shaft Diameter
22
mm
inside diameter
22
mm
Outer Diameter
39
mm
Width
17
mm
Width of innerring
18
mm
rs min.
0.3
mm
Inner Diameter
28
mm
da min
24.0
mm
da max
27.0
mm
da max
37.0
mm
Basic dynamic load rating
18300
N
Basic static load rating
23700
N
Type of Inner Ring
LRTZ 222818
Mass
87.5
g
