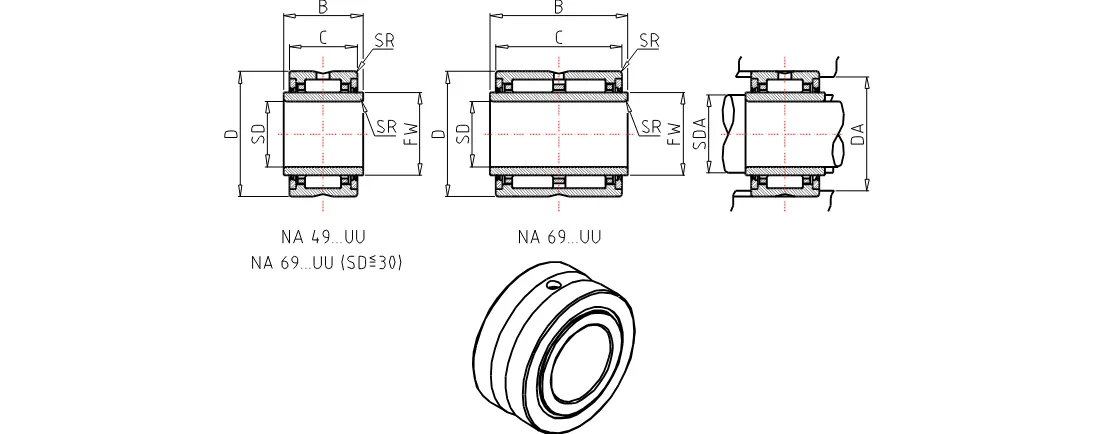

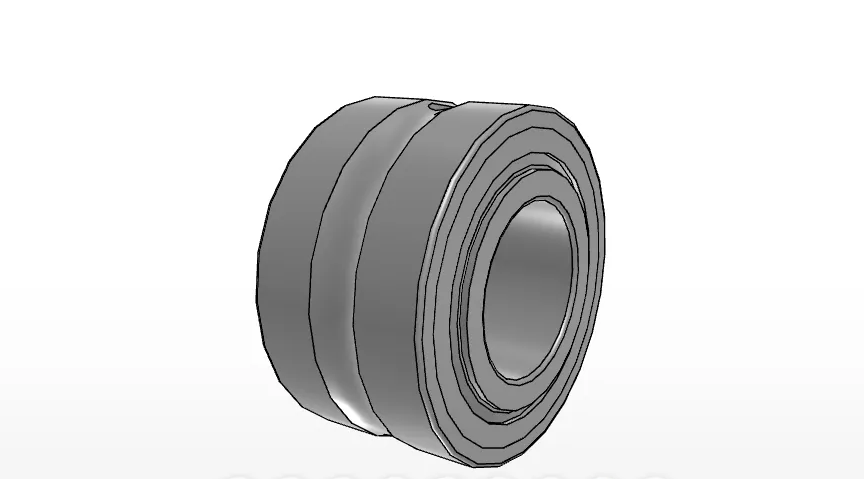

IKO NA4901UU
Machined Type Needle Roller Bearings, High Carbon Steel, Oil Hole, With Seals, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NA4901UU
Shaft Diameter
12
mm
inside diameter
12
mm
Outer Diameter
24
mm
Width
13
mm
Width of innerring
14
mm
rs min.
0.3
mm
Inner Diameter
16
mm
da min
14.0
mm
da max
15.0
mm
da max
22.0
mm
Basic dynamic load rating
8470
N
Basic static load rating
9320
N
Type of Inner Ring
LRTZ 121614
Mass
27.5
g
