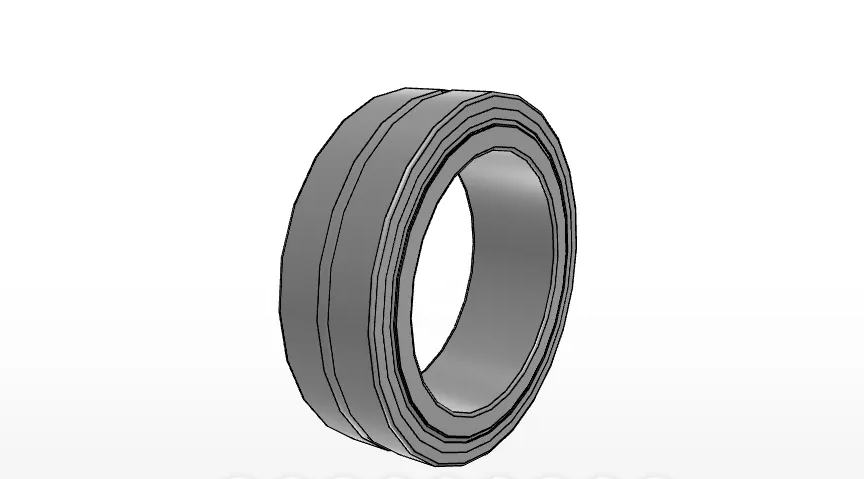

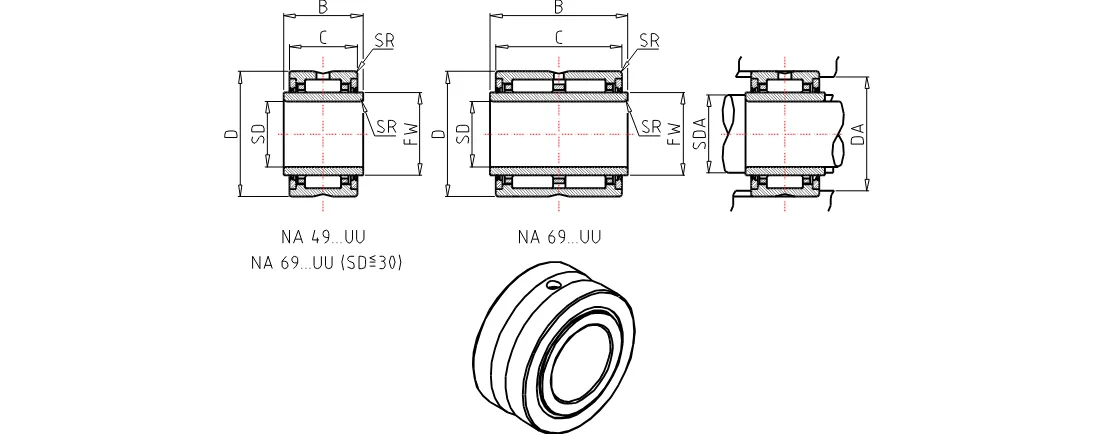

IKO NA4917UU
Machined Type Needle Roller Bearings, High Carbon Steel, Oil Hole, With Seals, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NA4917UU
Shaft Diameter
85
mm
inside diameter
85
mm
Outer Diameter
120
mm
Width
35
mm
Width of innerring
36
mm
rs min.
1.1
mm
Inner Diameter
100
mm
da min
91.5
mm
da max
98.0
mm
da max
113.5
mm
Basic dynamic load rating
103000
N
Basic static load rating
225000
N
Type of Inner Ring
LRTZ 8510036
Mass
1300.0
g
