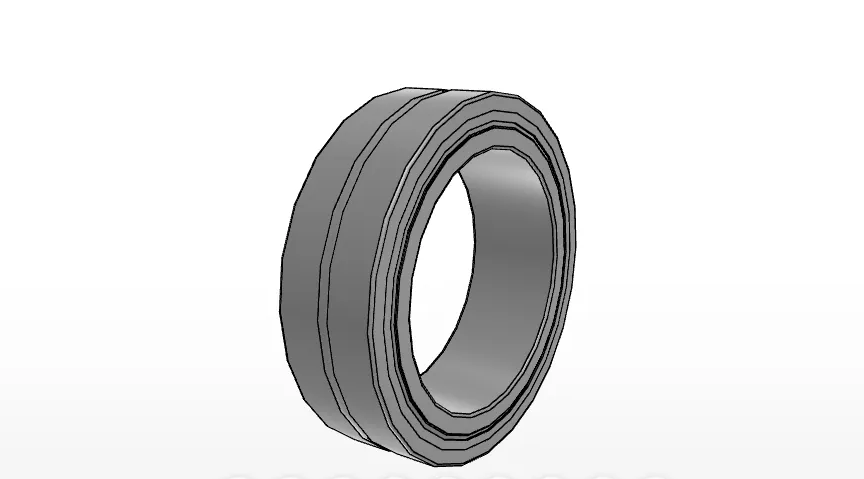

IKO NA4920UU
Machined Type Needle Roller Bearings, High Carbon Steel, Oil Hole, With Seals, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NA4920UU
Shaft Diameter
100
mm
inside diameter
100
mm
Outer Diameter
140
mm
Width
40
mm
Width of innerring
41
mm
rs min.
1.1
mm
Inner Diameter
115
mm
da min
106.5
mm
da max
113.0
mm
da max
133.5
mm
Basic dynamic load rating
134000
N
Basic static load rating
297000
N
Type of Inner Ring
LRTZ 10011541
Mass
1980.0
g
