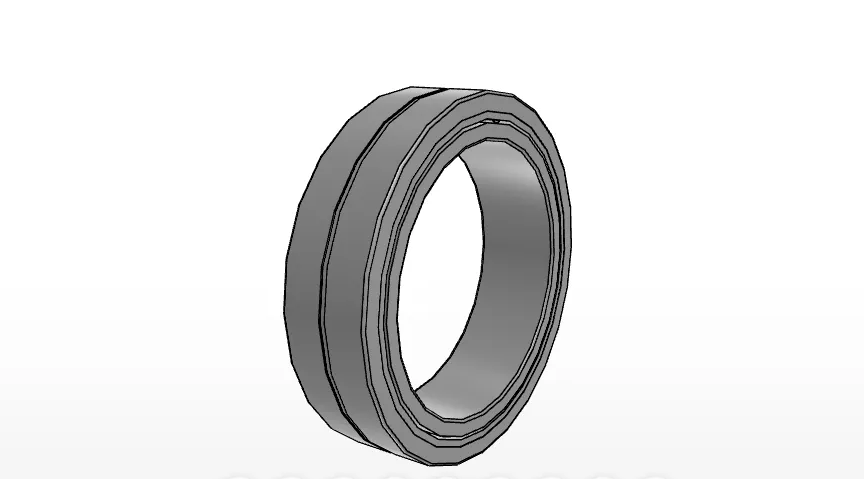

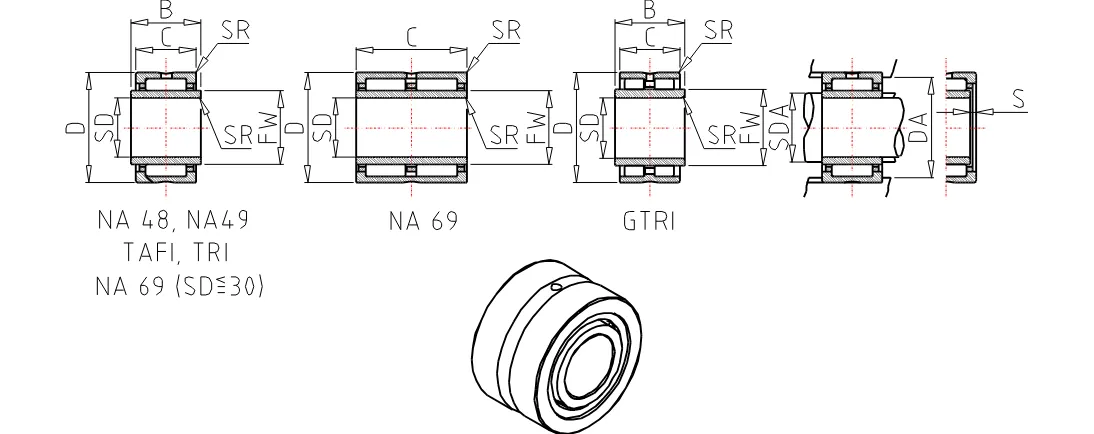

IKO NA4984
Machined Type Needle Roller Bearings, High Carbon Steel, Oil Hole, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NA4984
Shaft Diameter
420
mm
inside dimetar
420
mm
Outer Diameter
560
mm
Width
140
mm
Width of innerring
0.000
mm
rs min.
4.0
mm
Inner Diameter
470
mm
Amount of movement
5.000
mm
da min
436.0
mm
da max
467.0
mm
da max
544.0
mm
Basic dynamic load rating
1640000
N
Basic static load rating
4510000
N
IR
LRT 420470140
mm
Mass
98500.0
g
