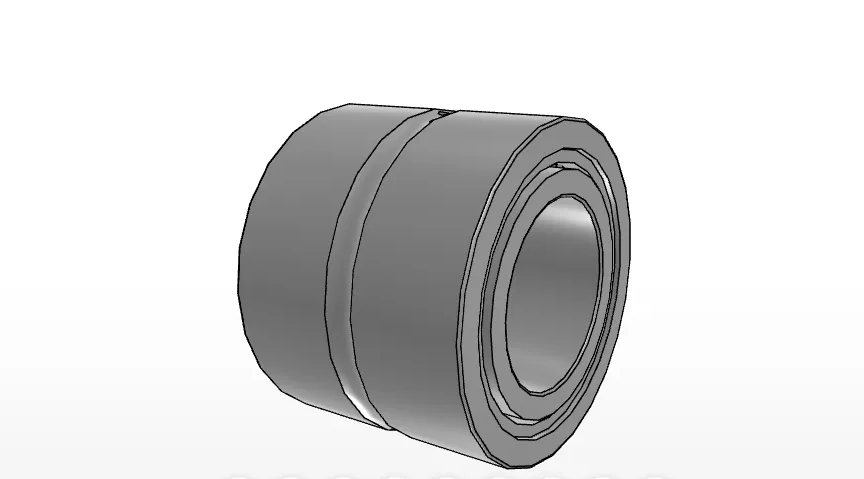

IKO NA69/22
Machined Type Needle Roller Bearings, High Carbon Steel, Oil Hole, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NA69/22
Shaft Diameter
22
mm
inside dimetar
22
mm
Outer Diameter
39
mm
Width
30
mm
Width of innerring
0.000
mm
rs min.
0.3
mm
Inner Diameter
28
mm
Amount of movement
0.500
mm
da min
24.0
mm
da max
27.0
mm
da max
37.0
mm
Basic dynamic load rating
36300
N
Basic static load rating
56900
N
IR
LRT 222830
mm
Mass
152.0
g
