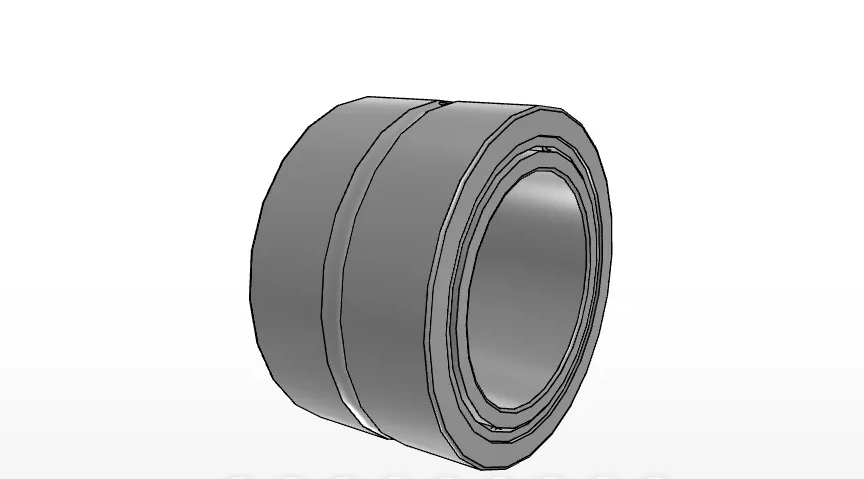

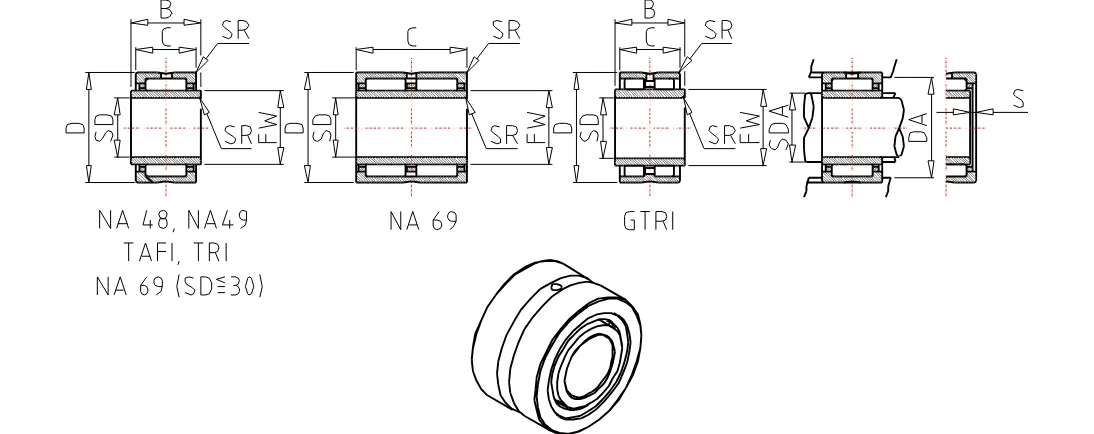

IKO NA6909
Machined Type Needle Roller Bearings, High Carbon Steel, Oil Hole, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
NA6909
Shaft Diameter
45
mm
inside dimetar
45
mm
Outer Diameter
68
mm
Width
40
mm
Width of innerring
0.000
mm
rs min.
0.6
mm
Inner Diameter
52
mm
Amount of movement
0.300
mm
da min
49.0
mm
da max
51.0
mm
da max
64.0
mm
Basic dynamic load rating
74600
N
Basic static load rating
147000
N
IR
LRT 455240
mm
Mass
520.0
g
