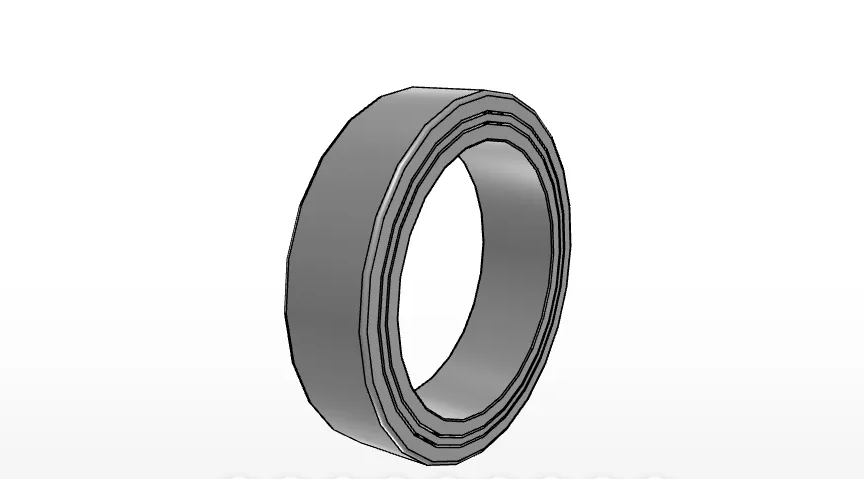

IKO NAF9012030
Needle Roller Bearings with Separable Cage, High Carbon Steel, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Order Number
RNAFW223532
Shaft Diameter
22
mm
Inscribed circle diameter
22
mm
Outer Diameter
35
mm
Width
32
mm
rs min.
0.3
mm

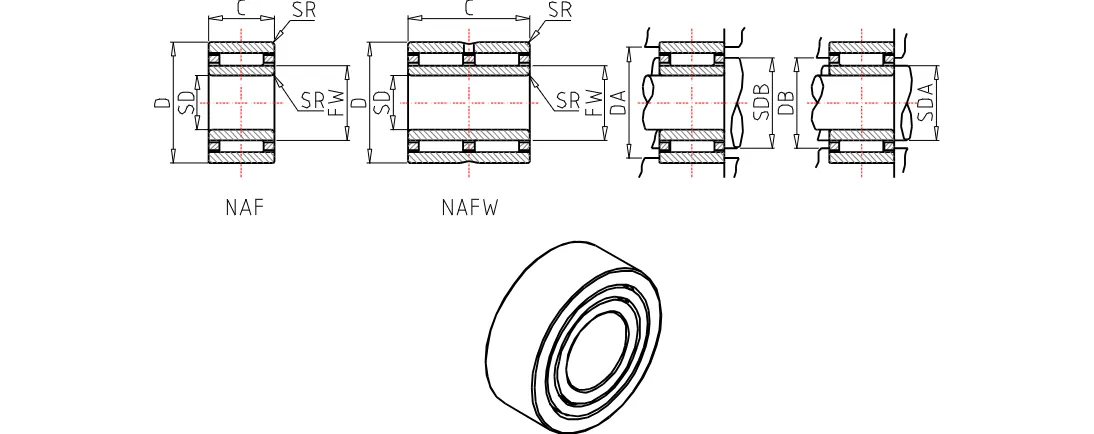

Dimension related to the installation
27.8
mm
Da max
33
mm
Dimension related to the installation
22.6
mm
Basic dynamic load rating
30200
N
Basic static load rating
41800
N
MASS
117.0
g
