IKO TA1010Z
Shell Needle Roller Bearing, Metric, Caged, Chromium Molybdenum Steel
(BRAND)：IKO
(Availability)：In Stock
Order Number
TA1010Z
Shaft dia.
10
mm
Inscribed circle diameter
10
mm
Outer Diameter
17
mm
Width
10
mm
Basic dynamic load rating
4150
N
Basic static load rating
3780
N
Mass
7.90
g
IKO TA1010Z Shell Needle Roller Bearing Overview
What is the TA1010Z?
The TA1010Z is an IKO shell needle roller bearing in the metric needle roller bearing product series. It uses a cage type internal structure and is made of chromium molybdenum steel.

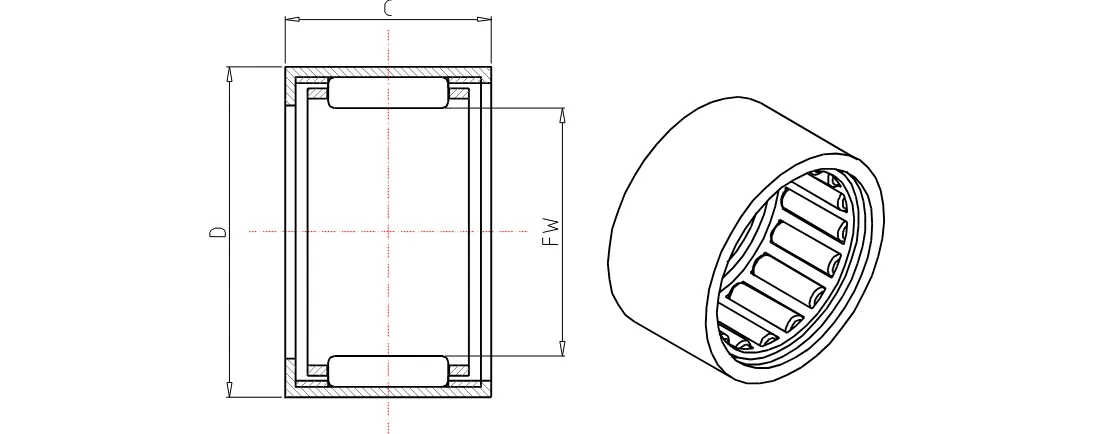

TA1010Z Dimensions and Product Details
What dimensions and specifications are listed?
- Order number: TA1010Z
- Brand: IKO
- Shaft diameter: 10 mm
- Inscribed circle diameter: 10 mm
- Outer diameter: 17 mm
- Width: 10 mm
- Mass: 7.90 g
TA1010Z Load Rating Information
What load ratings are provided for this bearing?
The supplied product data lists a basic dynamic load rating of 4150 N and a basic static load rating of 3780 N for the TA1010Z. The bearing is identified as a needle roller bearing with a cage type structure.
