IKO TA1012Z
Shell Needle Roller Bearing, Metric, Caged, Chromium Molybdenum Steel
(BRAND)：IKO
(Availability)：In Stock
Order Number
TA1012Z
Shaft dia.
10
mm
Inscribed circle diameter
10
mm
Outer Diameter
17
mm
Width
12
mm
Basic dynamic load rating
5590
N
Basic static load rating
5540
N
Mass
9.30
g
IKO TA1012Z Shell Needle Roller Bearing Overview
What is the TA1012Z?
The IKO TA1012Z is a metric shell needle roller bearing in the IKO Needle Roller Bearings product series. The supplied data identifies it as a caged bearing made from chromium molybdenum steel.
- Brand: IKO
- Model: TA1012Z
- Bearing type: Needle Roller Bearings
- Internal structure: Cage Type
- Material: Chromium Molybdenum Steel

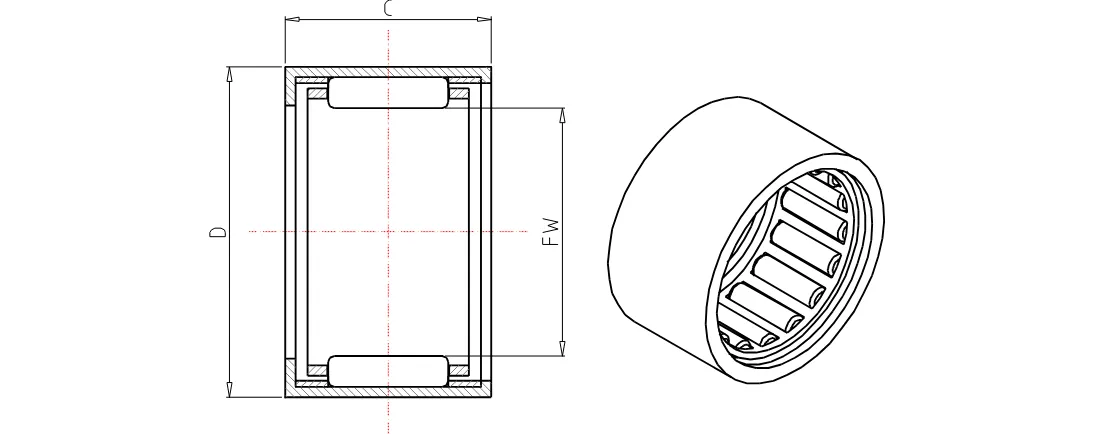

TA1012Z Dimensions and Product Data
What dimensions and mass are listed for this bearing?
The TA1012Z is specified with a 10 mm shaft diameter, a 10 mm inscribed circle diameter, a 17 mm outer diameter, and a 12 mm width. The listed mass is 9.30 g.
- Shaft diameter: 10 mm
- Inscribed circle diameter: 10 mm
- Outer diameter: 17 mm
- Width: 12 mm
- Mass: 9.30 g
TA1012Z Load Rating Details
What load ratings are provided for the TA1012Z?
The product data lists a basic dynamic load rating of 5590 N and a basic static load rating of 5540 N for the IKO TA1012Z. These values are provided as published product specifications.
Bearing Type: Needle Roller Bearings; Internal Structure: Cage Type; Material: Chromium Molybdenum Steel.
