IKO TA1212Z
Shell Needle Roller Bearing, Metric, Caged, Chromium Molybdenum Steel

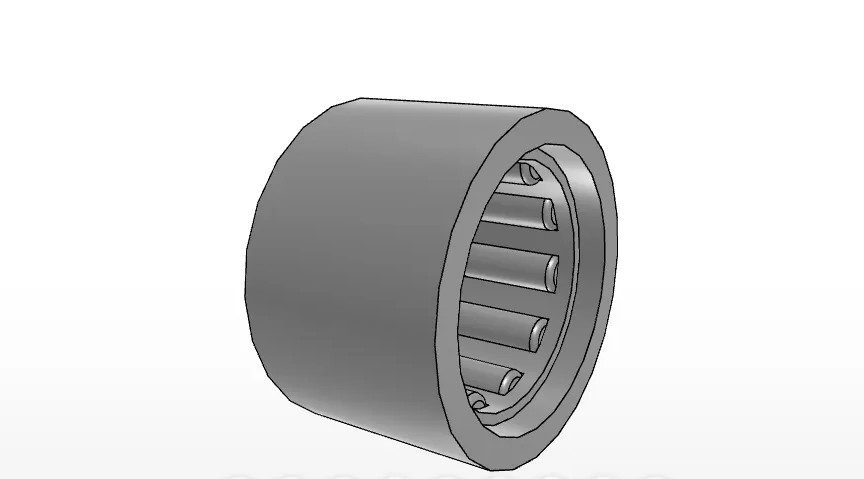

IKO TA1212Z Shell Needle Roller Bearing
The TA1212Z is an IKO shell needle roller bearing in the metric needle roller bearings series. The supplied data identifies it as a caged bearing made from chromium molybdenum steel.
What bearing type and structure are specified for the TA1212Z?
The TA1212Z is listed as a Needle Roller Bearing with a Cage Type internal structure. Its product title describes it as a shell needle roller bearing.

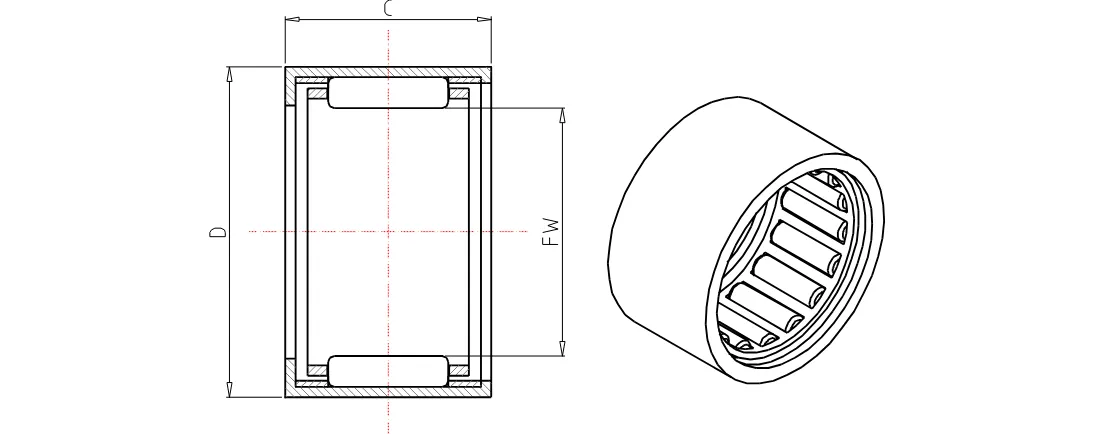

TA1212Z Dimensions and Mass
- Shaft diameter: 12 mm
- Inscribed circle diameter: 12 mm
- Outer diameter: 19 mm
- Width: 12 mm
- Mass: 10.50 g
What are the stated metric dimensions of the TA1212Z?
The supplied product data lists a 12 mm shaft diameter, 12 mm inscribed circle diameter, 19 mm outer diameter, and 12 mm width for the TA1212Z.
TA1212Z Load Ratings and Material
The bearing uses chromium molybdenum steel and has a caged internal structure. Its supplied basic load ratings are 6000 N dynamic and 6310 N static.
What load ratings are provided for the TA1212Z?
The data lists a basic dynamic load rating of 6000 N and a basic static load rating of 6310 N. These values should be used according to the supplied product specification.
