IKO TA1715Z
Shell Needle Roller Bearing, Metric, Caged, Chromium Molybdenum Steel

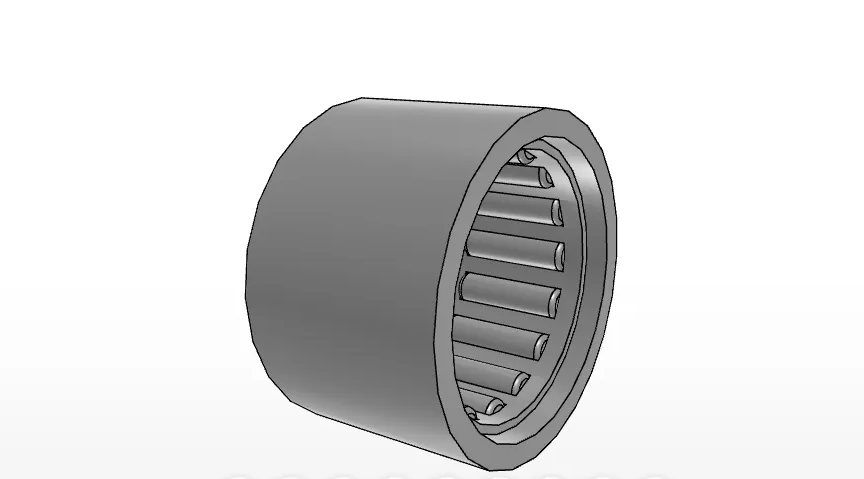

TA1715Z IKO Needle Roller Bearing Overview
The TA1715Z is an IKO shell needle roller bearing in the metric needle roller bearing series. It uses a caged internal structure and is made from chromium molybdenum steel according to the supplied product data.
What bearing type is the TA1715Z?
The TA1715Z is classified as a needle roller bearing, with the product title describing it as a shell needle roller bearing with a cage-type internal structure.

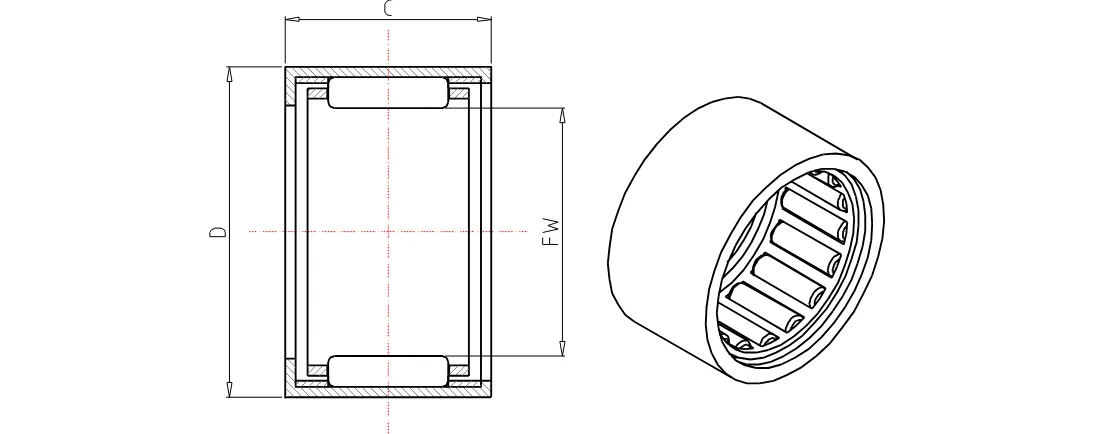

TA1715Z Dimensions and Measured Data
- Shaft diameter: 17 mm
- Inscribed circle diameter: 17 mm
- Outer diameter: 24 mm
- Width: 15 mm
- Mass: 17.60 g
What are the bore-related dimensions?
The supplied data lists both the shaft diameter and inscribed circle diameter as 17 mm. The bearing has a 24 mm outer diameter and a 15 mm width.
TA1715Z Material and Load Rating Details
The bearing material is listed as chromium molybdenum steel. Its supplied basic dynamic load rating is 9660 N, and its basic static load rating is 12700 N.
What load ratings are provided for the TA1715Z?
The product data provides a basic dynamic load rating of 9660 N and a basic static load rating of 12700 N. These values should be used with the full bearing specification when evaluating suitability.
