IKO TAF293830/SG
Machined Type Needle Roller Bearings, High Carbon Steel, With Solid Lube
(BRAND)：IKO
(Availability)：In Stock
Order number
TAF293830/SG
Shaft Diameter
29
mm
Inner Diameter
29
mm
Outer Diameter
38
mm
Width
30
mm
rs min.
0.3
mm
Da max
36.0
mm
Basic dynamic load rating
30900
N
Basic static load rating
59100
N
Mass
88.0
g

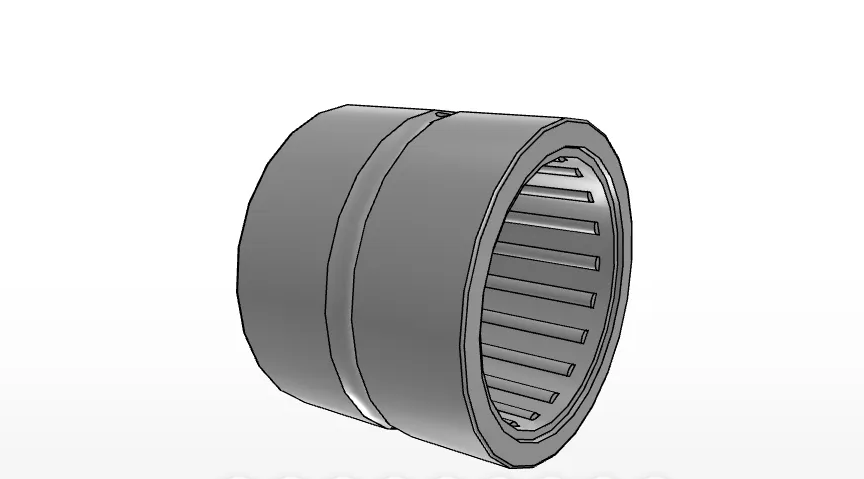

IKO TAF293830/SG Needle Roller Bearing Overview
What is the TAF293830/SG?
The TAF293830/SG is an IKO needle roller bearing in the Needle Roller Bearings product series. It is described as a machined type needle roller bearing with solid lube and a cage-type internal structure.
- Brand: IKO
- Product series: Needle Roller Bearings
- Bearing type: Needle Roller Bearings
- Internal structure: Cage Type
TAF293830/SG Dimensions and Material Details
What dimensions and material are listed for this bearing?
The supplied product data lists the following dimensional and material specifications. These values should be checked against the intended installation requirements.
- Shaft diameter: 29 mm
- Inner diameter: 29 mm
- Outer diameter: 38 mm
- Width: 30 mm
- rs min.: 0.3 mm
- Da max: 36.0 mm
- Material: High Carbon Chrome Steel
TAF293830/SG Load Ratings and Mass
What load ratings and mass are provided?
The product data includes basic load ratings and mass for the TAF293830/SG. No additional performance guarantees or application claims are stated in the supplied data.
- Basic dynamic load rating: 30900 N
- Basic static load rating: 59100 N
- Mass: 88.0 g
