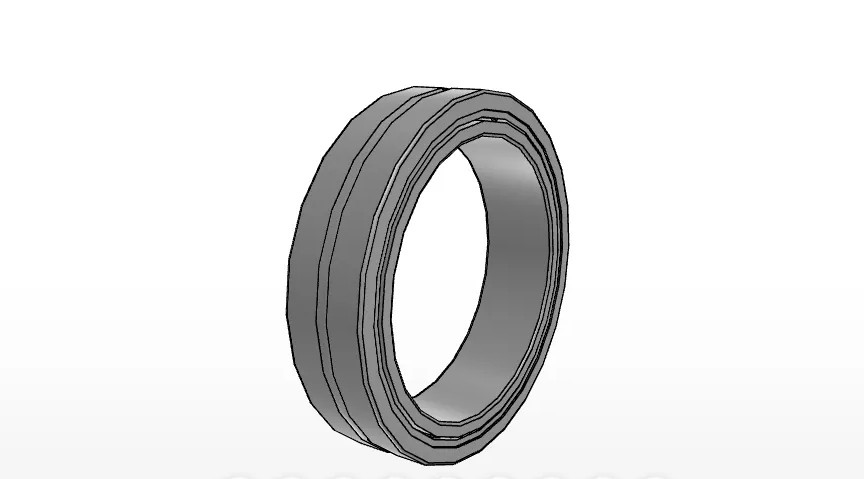

IKO TAFI10013030
Machined Type Needle Roller Bearings, High Carbon Steel, Oil Hole, Inner Ring
(BRAND)：IKO
(Availability)：In Stock
Order Number
TAFI10013030
Shaft Diameter
100
mm
inside dimetar
100
mm
Outer Diameter
130
mm
Width
30
mm
Width of innerring
0.000
mm
rs min.
1.0
mm
Inner Diameter
110
mm
Amount of movement
0.500
mm
da min
105.0
mm
da max
108.0
mm
da max
125.0
mm
Basic dynamic load rating
106000
N
Basic static load rating
240000
N
IR
LRT 10011030
mm
Mass
1040.0
g
