INA 3814-2RS
Angular Contact Ball Bearings

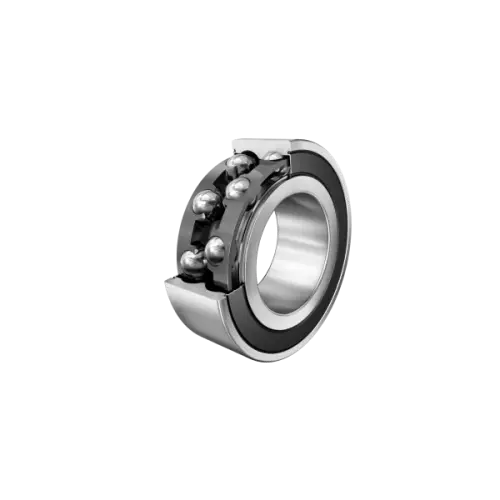

Angular contact ball bearing 38..-B-2RS-TVH, double row, seals, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

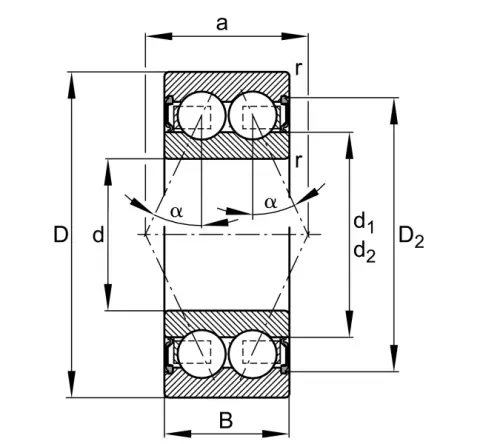

Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
90 mm
Outside diameter
B
15 mm
Width
Cr
18,800 N
Basic dynamic load rating, radial
C0r
23,200 N
Basic static load rating, radial
Cur
1,310 N
Fatigue load limit, radial
CG
3,450 1/min
Limiting speed
≈m
0.205 kg
Weight

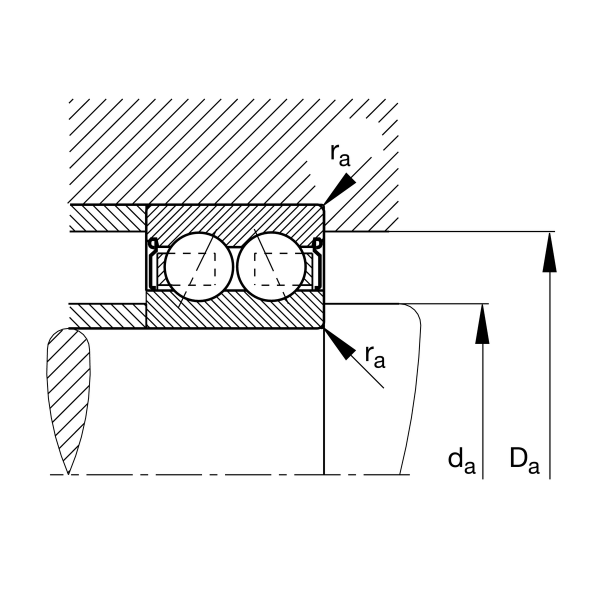

Mounting dimensions
da min
73.2 mm
Minimum diameter shaft shoulder
da min
86.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
