INA 3818-2RS
Angular Contact Ball Bearings
Angular contact ball bearing 38..-B-2RS-TVH, double row, seals, plastic cage
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

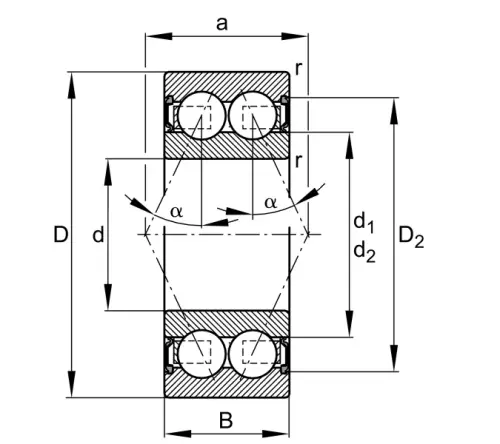

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
115 mm
Outside diameter
B
19 mm
Width
Cr
27,000 N
Basic dynamic load rating, radial
C0r
35,500 N
Basic static load rating, radial
Cur
2,000 N
Fatigue load limit, radial
CG
2,750 1/min
Limiting speed
≈m
0.422 kg
Weight

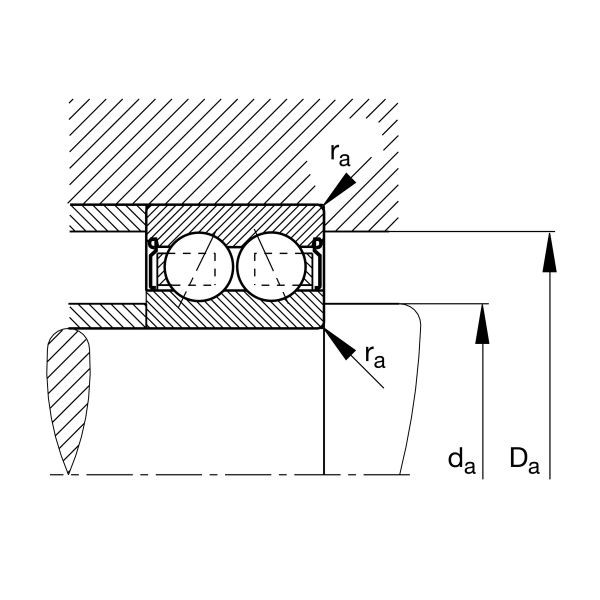

Mounting dimensions
da min
94.6 mm
Minimum diameter shaft shoulder
da min
110.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
