INA 811/560-M
Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearing 811..-M, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

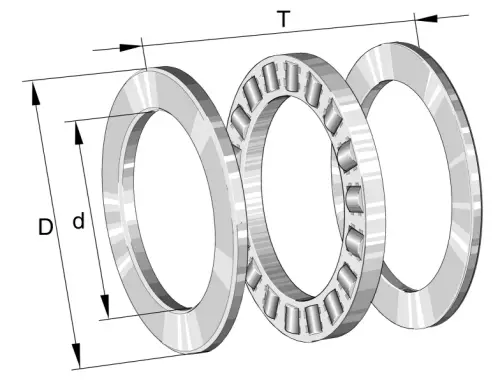

Main Dimensions & Performance Data
d
560 mm
Bore diameter
T
85 mm
Height
Ca
2,190,000 N
Basic dynamic load rating, axial
C0a
11,000,000 N
Basic static load rating, axial
Cua
810,000 N
Fatigue load limit, axial
CG
470 1/min
Limiting speed
nϑr
147 1/min
Reference speed
D
670 mm
Outside diameter
≈m
64.18 kg
Weight

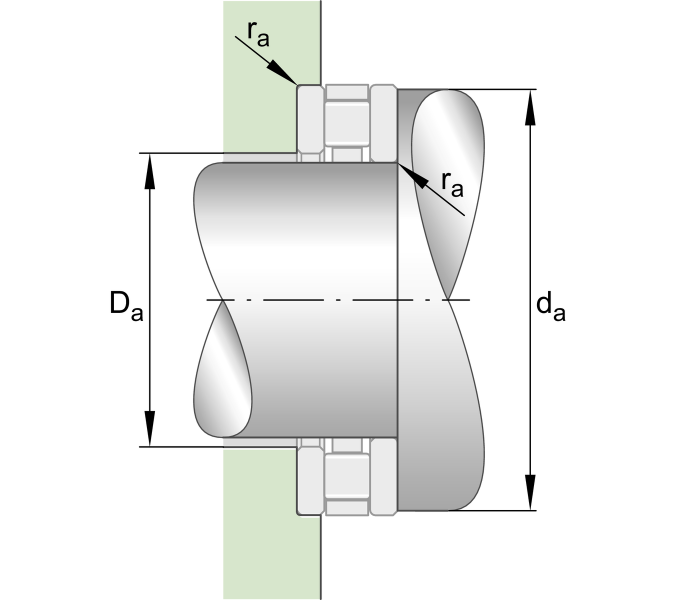

Mounting dimensions
ra max
3 mm
Maximum recess radius
