INA 81110-TV
Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

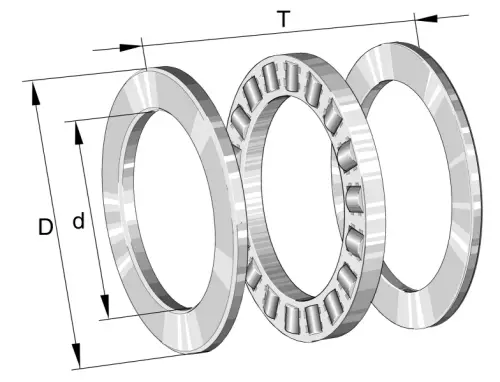

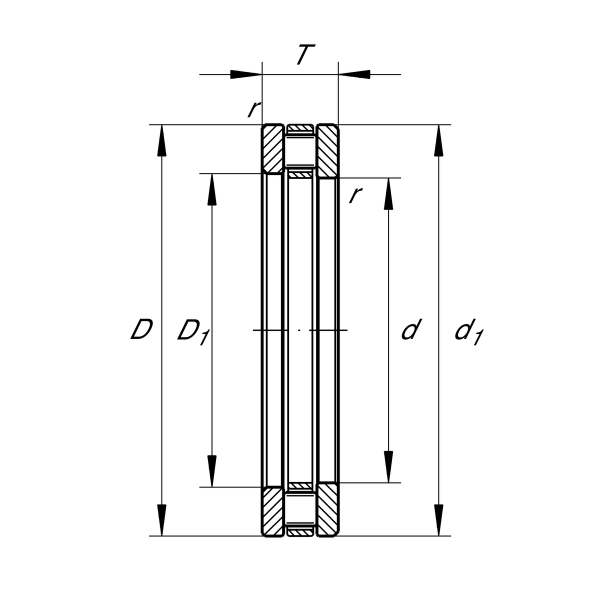

Main Dimensions & Performance Data
d
50 mm
Bore diameter
T
14 mm
Height
Ca
62,000 N
Basic dynamic load rating, axial
C0a
177,000 N
Basic static load rating, axial
Cua
17,400 N
Fatigue load limit, axial
CG
4,900 1/min
Limiting speed
nϑr
1,840 1/min
Reference speed
D
70 mm
Outside diameter
≈m
142.3 g
Weight

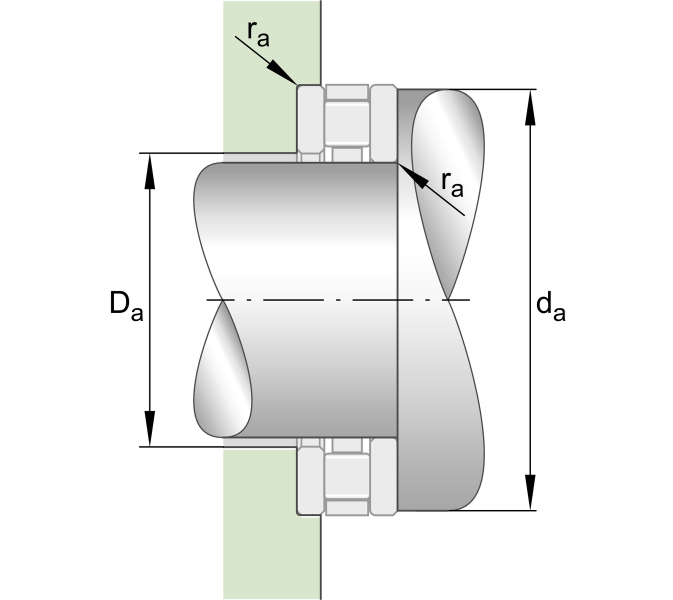

Mounting dimensions
da min
68 mm
Minimum diameter shaft shoulder
da min
52 mm
Maximum diameter of housing shoulder
