INA 81112-TV

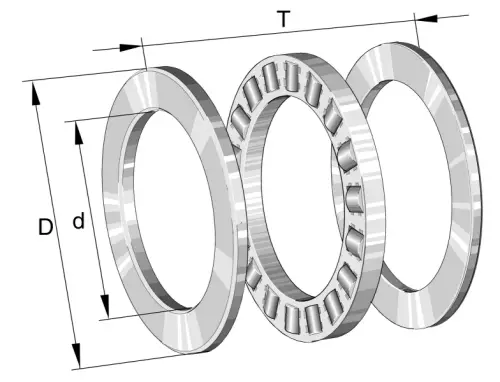

Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearings 811, single direction, comprising K811, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

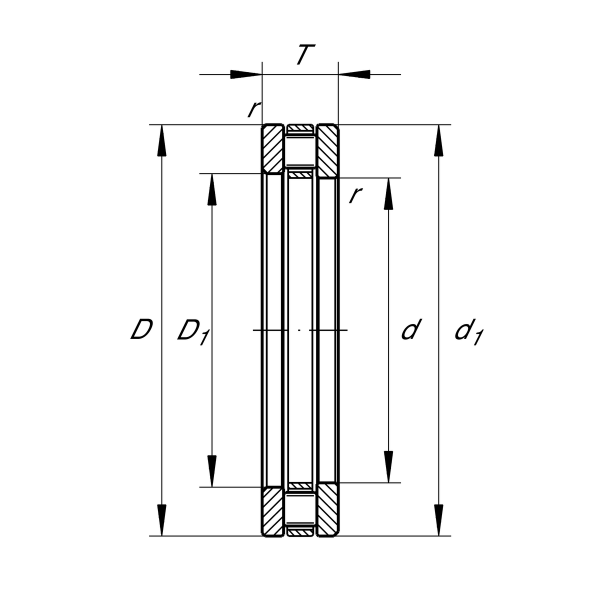

Main Dimensions & Performance Data
d
60 mm
Bore diameter
T
17 mm
Height
Ca
103,000 N
Basic dynamic load rating, axial
C0a
315,000 N
Basic static load rating, axial
Cua
32,500 N
Fatigue load limit, axial
CG
3,950 1/min
Limiting speed
nϑr
1,360 1/min
Reference speed
D
85 mm
Outside diameter
≈m
269.4 g
Weight

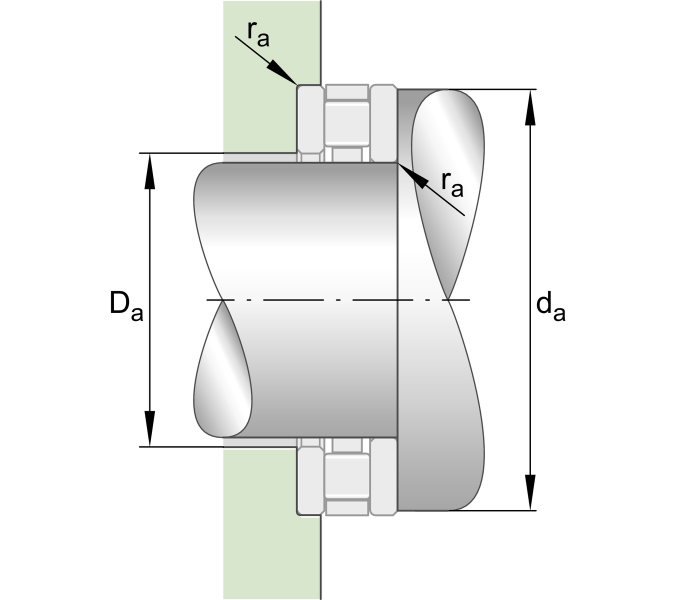

Mounting dimensions
da min
82 mm
Minimum diameter shaft shoulder
da min
62 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
