INA 81126-M
Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearing 811..-M, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

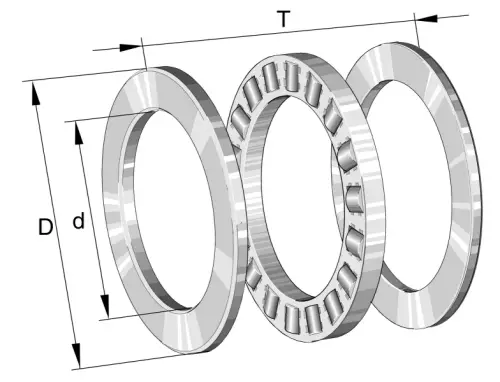

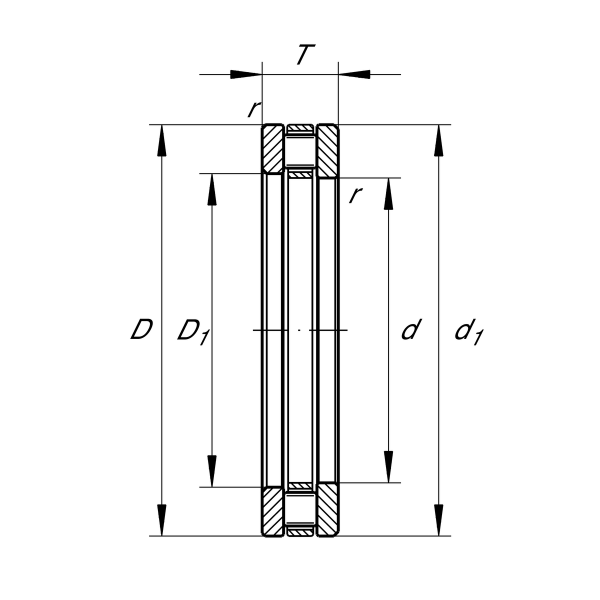

Main Dimensions & Performance Data
d
130 mm
Bore diameter
T
30 mm
Height
Ca
233,000 N
Basic dynamic load rating, axial
C0a
810,000 N
Basic static load rating, axial
Cua
72,000 N
Fatigue load limit, axial
CG
1,920 1/min
Limiting speed
nϑr
820 1/min
Reference speed
D
170 mm
Outside diameter
≈m
1.99 kg
Weight

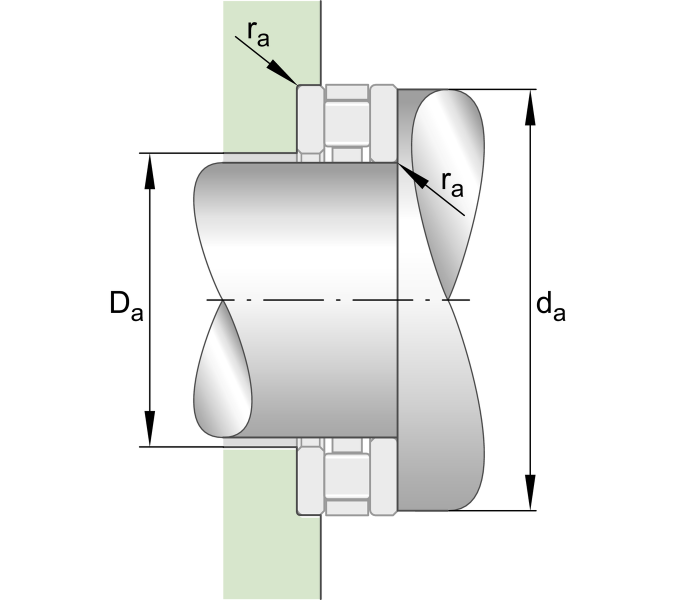

Mounting dimensions
da min
165 mm
Minimum diameter shaft shoulder
da min
135 mm
Maximum diameter of housing shoulder
