INA 81128-M
Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearing 811..-M, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

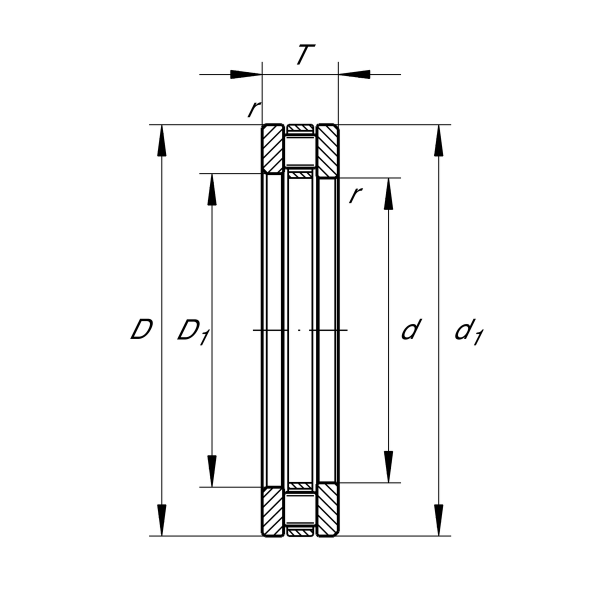

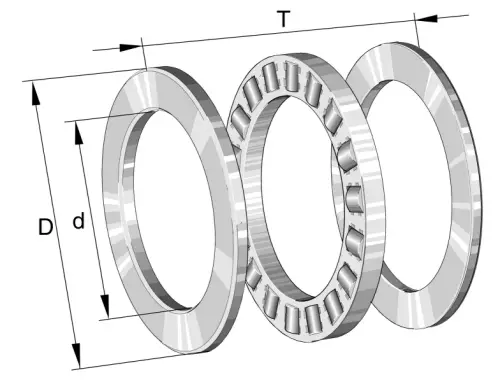

Main Dimensions & Performance Data
d
140 mm
Bore diameter
T
31 mm
Height
Ca
236,000 N
Basic dynamic load rating, axial
C0a
840,000 N
Basic static load rating, axial
Cua
73,000 N
Fatigue load limit, axial
CG
1,800 1/min
Limiting speed
nϑr
780 1/min
Reference speed
D
180 mm
Outside diameter
≈m
2.167 kg
Weight
Mounting dimensions
da min
175 mm
Minimum diameter shaft shoulder
da min
145 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum recess radius
