INA 812/500-M
Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearing 812..-M, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

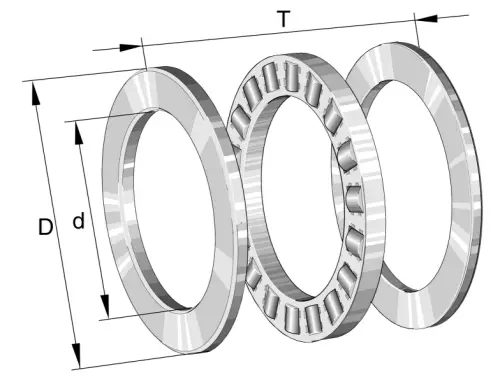

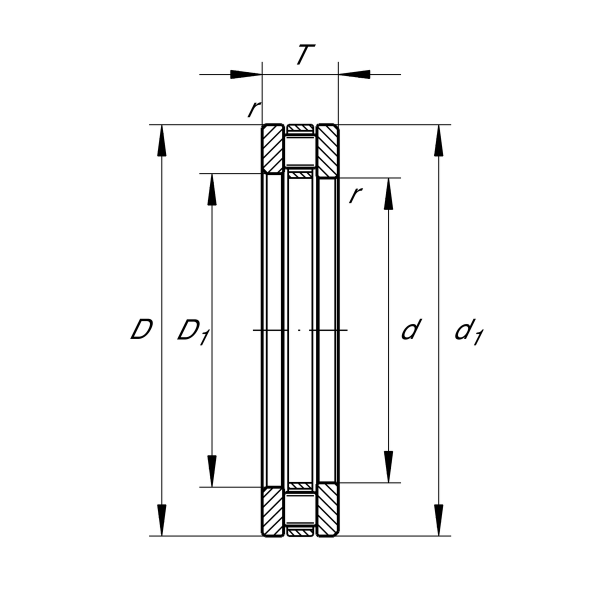

Main Dimensions & Performance Data
d
500 mm
Bore diameter
T
135 mm
Height
Ca
4,250,000 N
Basic dynamic load rating, axial
C0a
18,000,000 N
Basic static load rating, axial
Cua
1,260,000 N
Fatigue load limit, axial
CG
490 1/min
Limiting speed
nϑr
135 1/min
Reference speed
D
670 mm
Outside diameter
≈m
158.27 kg
Weight

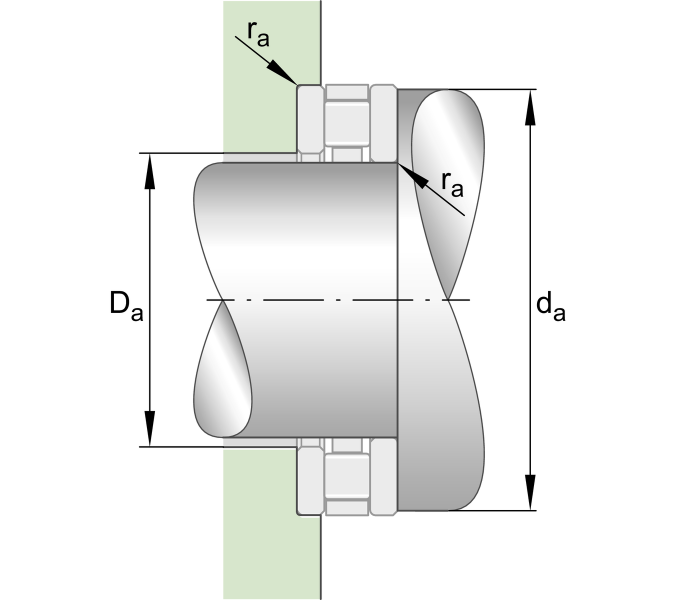

Mounting dimensions
ra max
5 mm
Maximum recess radius
