INA 812/530-M
Axial-Cylindrical Roller Bearings

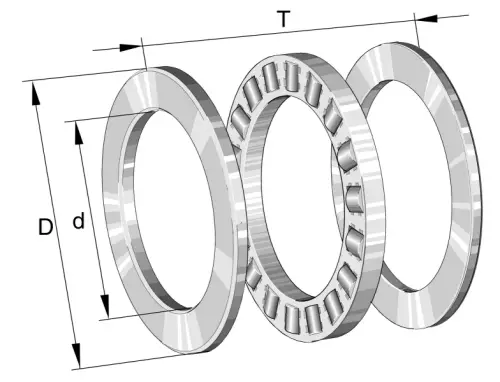

Axial cylindrical roller bearing 812..-M, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

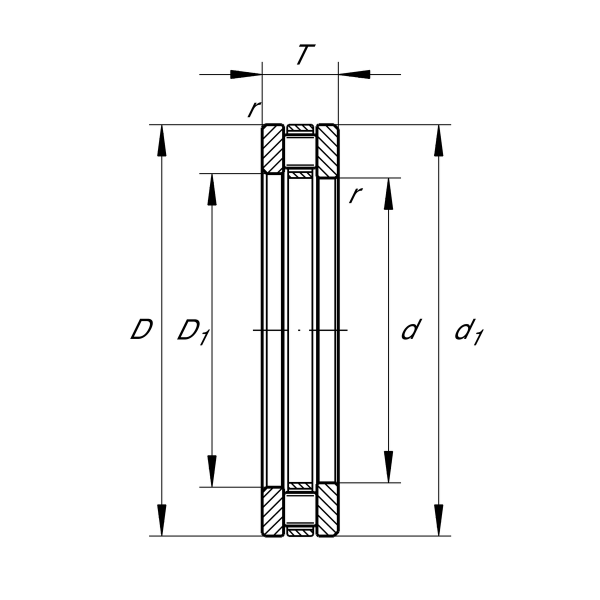

Main Dimensions & Performance Data
d
530 mm
Bore diameter
T
140 mm
Height
Ca
4,850,000 N
Basic dynamic load rating, axial
C0a
20,500,000 N
Basic static load rating, axial
Cua
1,450,000 N
Fatigue load limit, axial
CG
465 1/min
Limiting speed
nϑr
124 1/min
Reference speed
D
710 mm
Outside diameter
≈m
184 kg
Weight

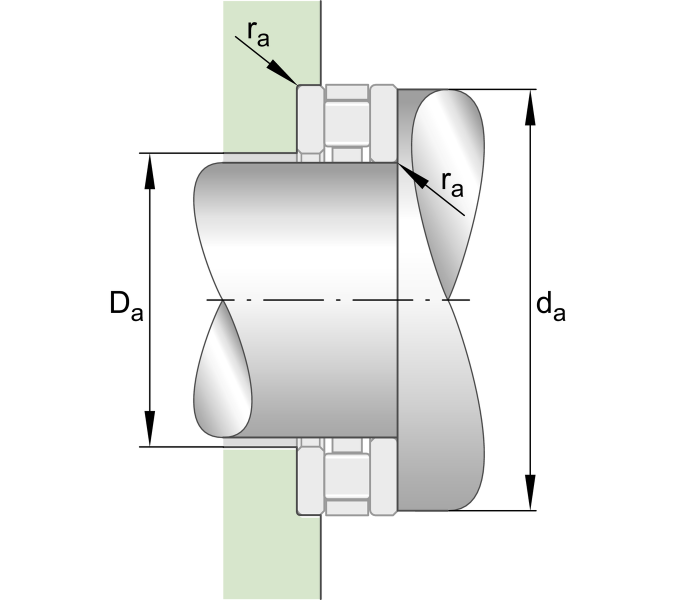

Mounting dimensions
ra max
5 mm
Maximum recess radius
