INA 81296-M
Axial-Cylindrical Roller Bearings

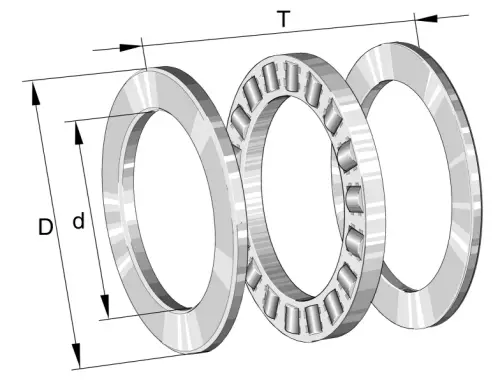

Axial cylindrical roller bearing 812..-M, single row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

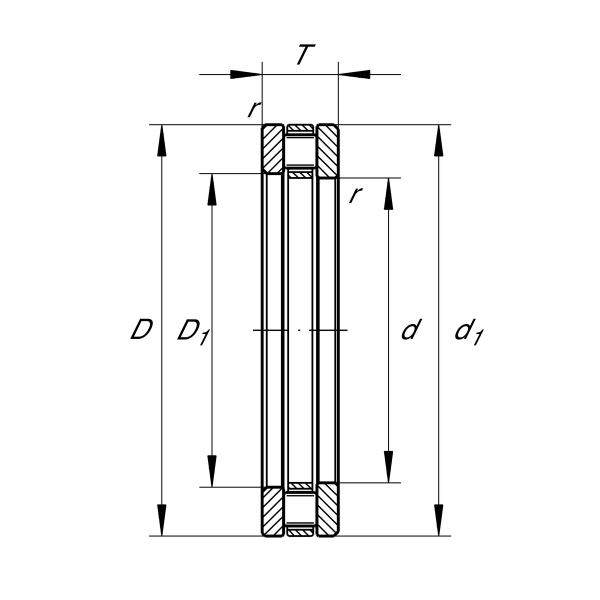

Main Dimensions & Performance Data
d
480 mm
Bore diameter
T
135 mm
Height
Ca
4,200,000 N
Basic dynamic load rating, axial
C0a
17,400,000 N
Basic static load rating, axial
Cua
1,230,000 N
Fatigue load limit, axial
CG
510 1/min
Limiting speed
nϑr
141 1/min
Reference speed
D
650 mm
Outside diameter
≈m
148.6 kg
Weight

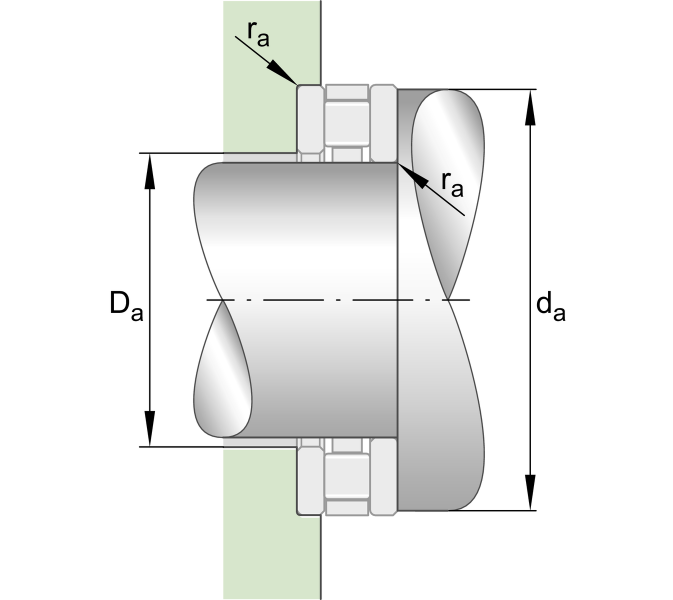

Mounting dimensions
da min
637 mm
Minimum diameter shaft shoulder
da min
518 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
