INA 89310-TV
Axial-Cylindrical Roller Bearings

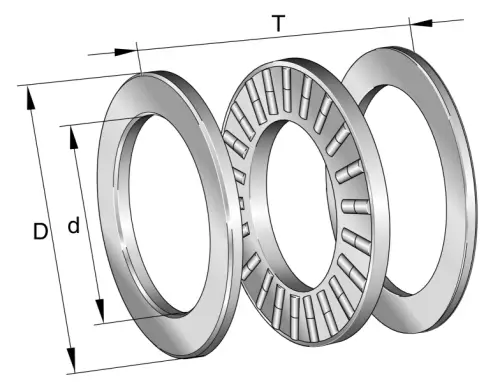

Axial cylindrical roller bearings 893, single direction, comprising K893, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

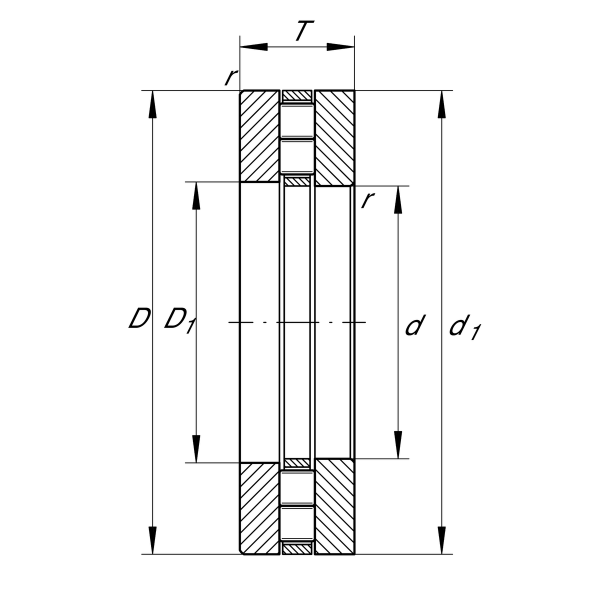

Main Dimensions & Performance Data
d
50 mm
Bore diameter
D
95 mm
Outside diameter
T
27 mm
Height
Ca
168,000 N
Basic dynamic load rating, axial
C0a
560,000 N
Basic static load rating, axial
Cua
59,000 N
Fatigue load limit, axial
CG
3,950 1/min
Limiting speed
nϑr
1,460 1/min
Reference speed
≈m
0.875 kg
Weight
Mounting dimensions
da
92 mm
Minimum diameter shaft shoulder
Da
56 mm
Maximum diameter of housing shoulder
ra
1.1 mm
Recess radius
