INA 89316-TV
Axial-Cylindrical Roller Bearings

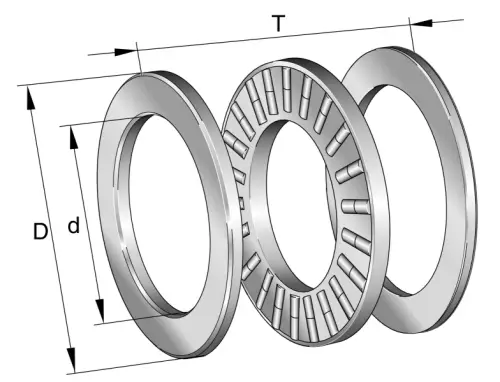

Axial cylindrical roller bearings 893, single direction, comprising K893, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

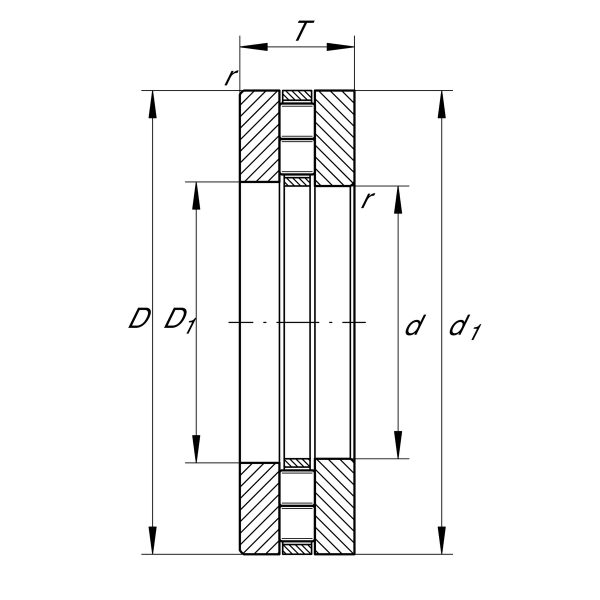

Main Dimensions & Performance Data
d
80 mm
Bore diameter
D
140 mm
Outside diameter
T
36 mm
Height
Ca
305,000 N
Basic dynamic load rating, axial
C0a
1,110,000 N
Basic static load rating, axial
Cua
101,000 N
Fatigue load limit, axial
CG
2,600 1/min
Limiting speed
nϑr
990 1/min
Reference speed
≈m
2.356 kg
Weight
Mounting dimensions
da
137 mm
Minimum diameter shaft shoulder
Da
86 mm
Maximum diameter of housing shoulder
ra
1.5 mm
Recess radius
