INA 89324-M
Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearing 893..-M, two-row
(BRAND)：INA
(Availability)：In Stock

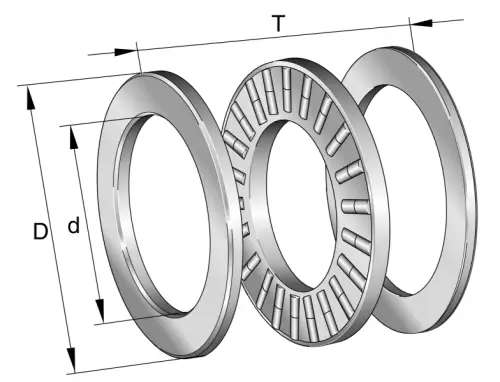

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
210 mm
Outside diameter
T
54 mm
Height
Ca
650,000 N
Basic dynamic load rating, axial
C0a
2,420,000 N
Basic static load rating, axial
Cua
229,000 N
Fatigue load limit, axial
CG
1,750 1/min
Limiting speed
nϑr
690 1/min
Reference speed
≈m
9.45 kg
Weight
Mounting dimensions
da
206 mm
Minimum diameter shaft shoulder
Da
130 mm
Maximum diameter of housing shoulder
ra
2.1 mm
Recess radius
