INA 89328-M-RR

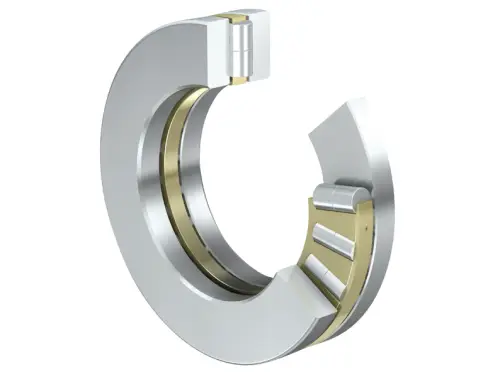

Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearings 894, single direction, comprising K894, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

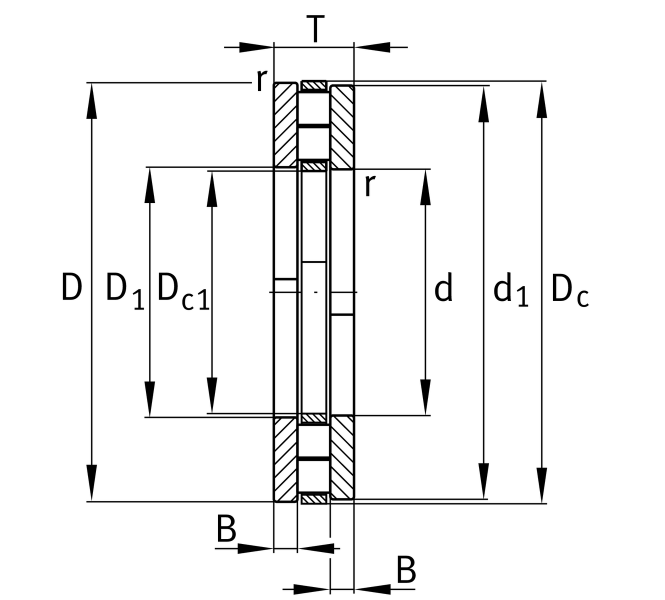

Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
240 mm
Outside diameter
T
60 mm
Height
Ca
820,000 N
Basic dynamic load rating, axial
C0a
3,200,000 N
Basic static load rating, axial
Cua
300,000 N
Fatigue load limit, axial
CG
1,520 1/min
Limiting speed
nϑr
570 1/min
Reference speed
≈m
12.6 kg
Weight
Mounting dimensions
da
235 mm
Minimum diameter shaft shoulder
Da
152 mm
Maximum diameter of housing shoulder
ra
2.1 mm
Recess radius
