INA 89330-M
Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearing 893..-M, two-row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

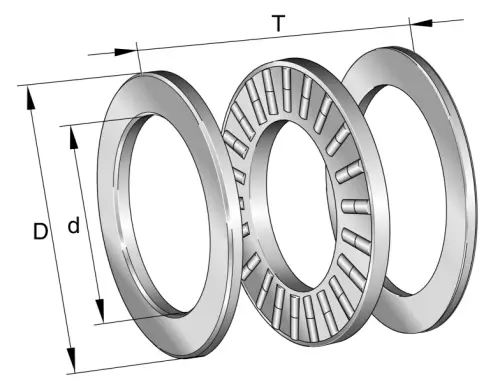

Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
250 mm
Outside diameter
T
60 mm
Height
Ca
840,000 N
Basic dynamic load rating, axial
C0a
3,350,000 N
Basic static load rating, axial
Cua
310,000 N
Fatigue load limit, axial
CG
1,440 1/min
Limiting speed
nϑr
540 1/min
Reference speed
≈m
13.076 kg
Weight
Mounting dimensions
da
245 mm
Minimum diameter shaft shoulder
Da
162 mm
Maximum diameter of housing shoulder
ra
2.1 mm
Recess radius
