INA 89336-M
Axial-Cylindrical Roller Bearings

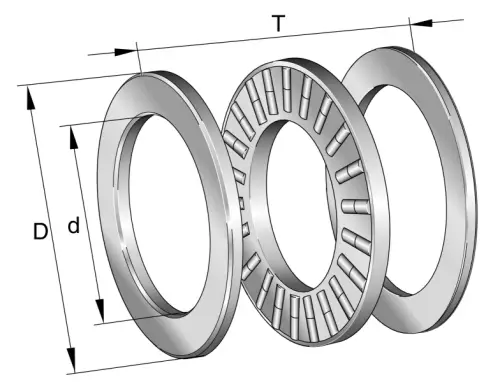

Axial cylindrical roller bearing 893..-M, two-row
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

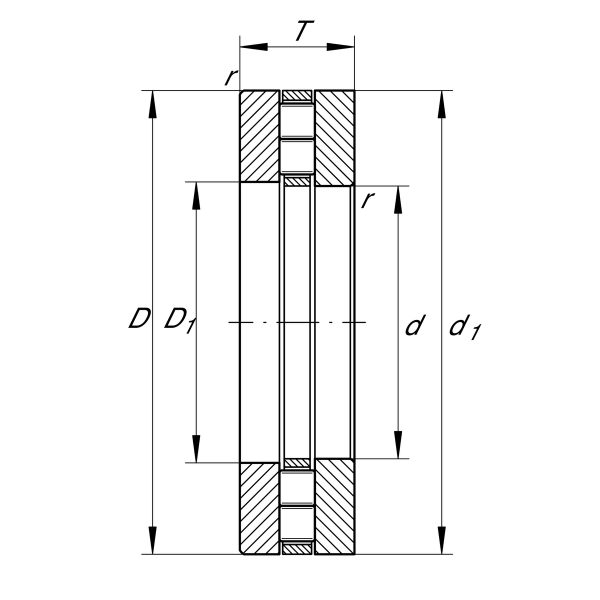

Main Dimensions & Performance Data
d
180 mm
Bore diameter
D
300 mm
Outside diameter
T
73 mm
Height
Ca
1,260,000 N
Basic dynamic load rating, axial
C0a
5,100,000 N
Basic static load rating, axial
Cua
465,000 N
Fatigue load limit, axial
CG
1,200 1/min
Limiting speed
nϑr
405 1/min
Reference speed
≈m
23.52 kg
Weight
