INA 89424-M

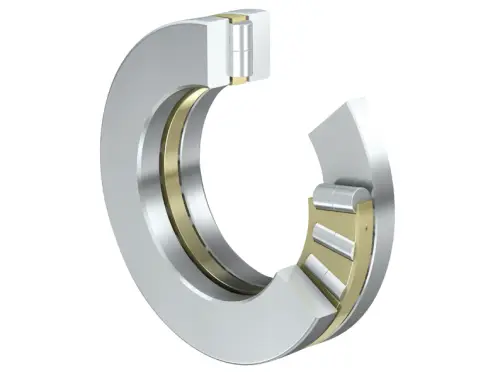

Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearings 894, single direction, comprising K894, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

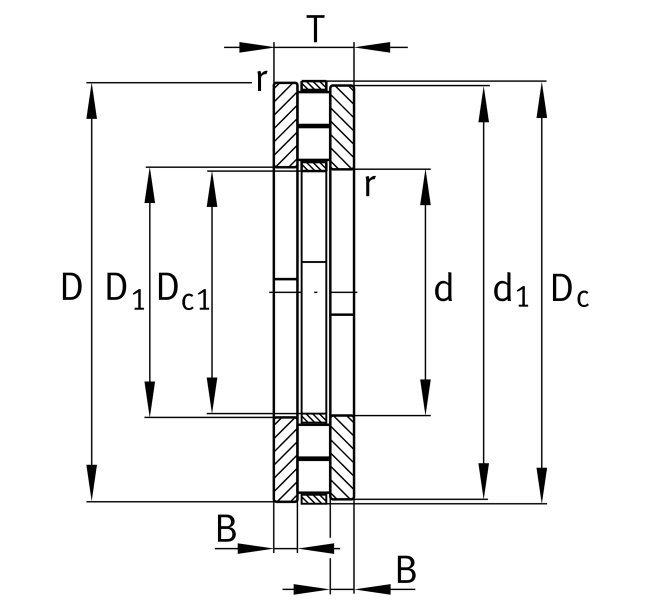

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
250 mm
Outside diameter
T
78 mm
Height
Ca
1,170,000 N
Basic dynamic load rating, axial
C0a
4,000,000 N
Basic static load rating, axial
Cua
395,000 N
Fatigue load limit, axial
CG
1,560 1/min
Limiting speed
nϑr
580 1/min
Reference speed
≈m
21.77 kg
Weight
