INA 89436-M

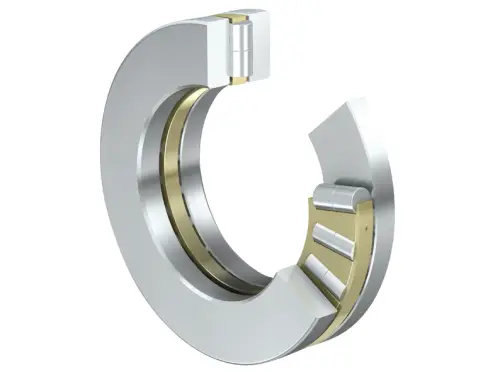

Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearings 894, single direction, comprising K894, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

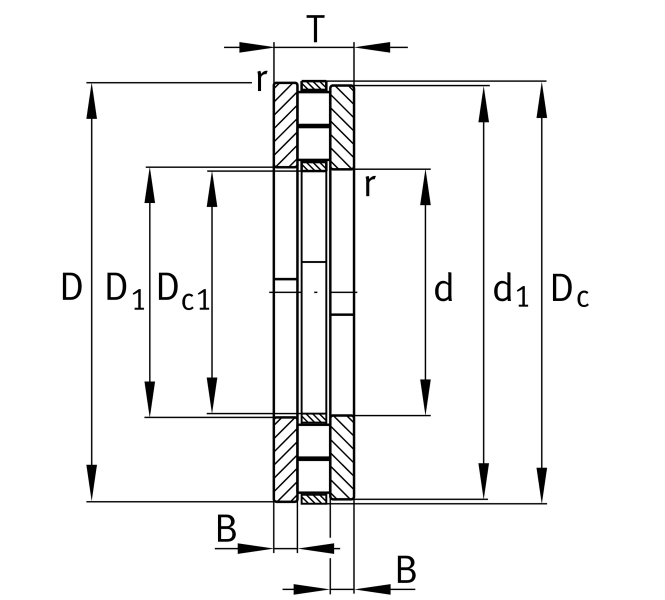

Main Dimensions & Performance Data
d
180 mm
Bore diameter
D
360 mm
Outside diameter
T
109 mm
Height
Ca
2,220,000 N
Basic dynamic load rating, axial
C0a
8,200,000 N
Basic static load rating, axial
Cua
740,000 N
Fatigue load limit, axial
CG
1,070 1/min
Limiting speed
nϑr
355 1/min
Reference speed
≈m
58.5 kg
Weight
