INA 89452-M

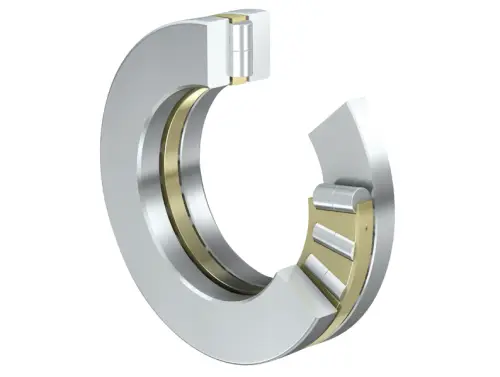

Axial-Cylindrical Roller Bearings
Axial cylindrical roller bearings 894, single direction, comprising K894, GS, WS
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

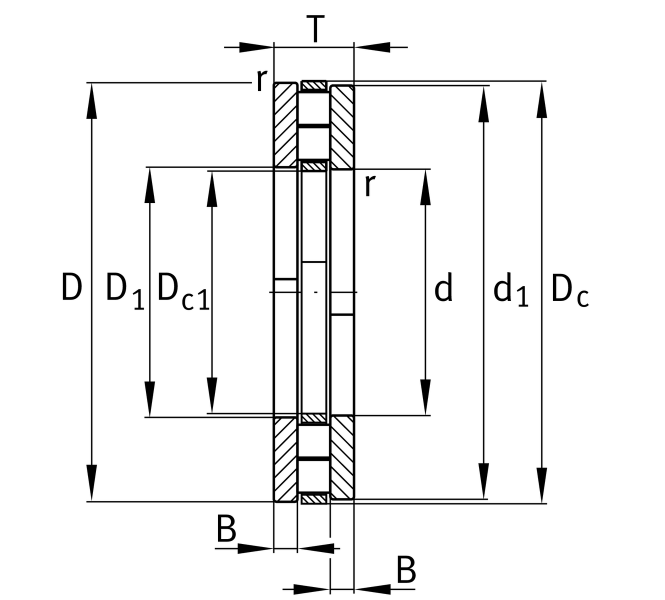

Main Dimensions & Performance Data
d
260 mm
Bore diameter
D
480 mm
Outside diameter
T
132 mm
Height
Ca
3,600,000 N
Basic dynamic load rating, axial
C0a
14,700,000 N
Basic static load rating, axial
Cua
1,220,000 N
Fatigue load limit, axial
CG
780 1/min
Limiting speed
nϑr
224 1/min
Reference speed
≈m
118.89 kg
Weight
