INA HFL2530
Drawn Cup Roller Clutch With Bearing Arrangement
Drawn cup roller clutch HFL, with bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

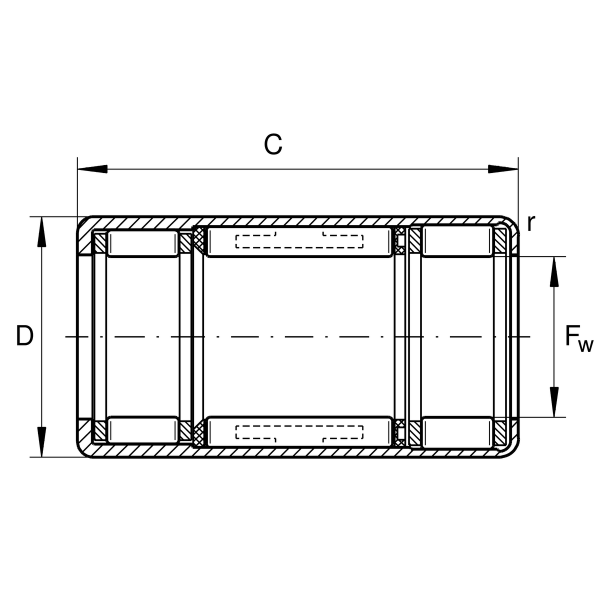

Main Dimensions & Performance Data
Fw
25 mm
Under roller diameter
D
32 mm
Outside diameter
C
30 mm
Width, outer ring
Cr
10,600 N
Basic dynamic load rating, radial
C0r
14,000 N
Basic static load rating, radial
rmin
0.3 mm
Minimum chamfer dimension
Cur
1,930 N
Fatigue load limit, radial
nGA
5,500 1/min
Limiting speed for rotating outer ring
nGW
5,500 1/min
Limiting speed for rotating shaft
≈m
44.18 g
Weight
Mounting dimensions
Md per
66 Nm
Permissible torque
