INA HFL3030
Drawn Cup Roller Clutch With Bearing Arrangement
Drawn cup roller clutch HFL, with bearing
(BRAND)：INA
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

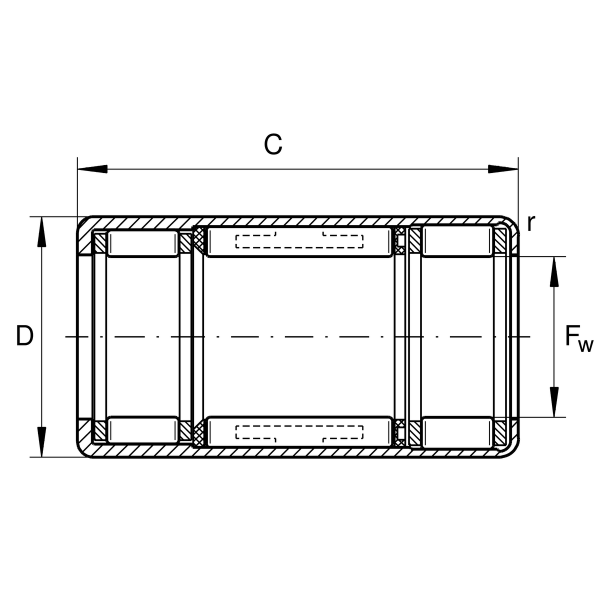

Main Dimensions & Performance Data
Fw
30 mm
Under roller diameter
D
37 mm
Outside diameter
C
30 mm
Width, outer ring
Cr
11,600 N
Basic dynamic load rating, radial
C0r
16,900 N
Basic static load rating, radial
rmin
0.3 mm
Minimum chamfer dimension
Cur
2,330 N
Fatigue load limit, radial
nGA
4,500 1/min
Limiting speed for rotating outer ring
nGW
4,500 1/min
Limiting speed for rotating shaft
≈m
51.41 g
Weight
Mounting dimensions
Md per
90 Nm
Permissible torque
